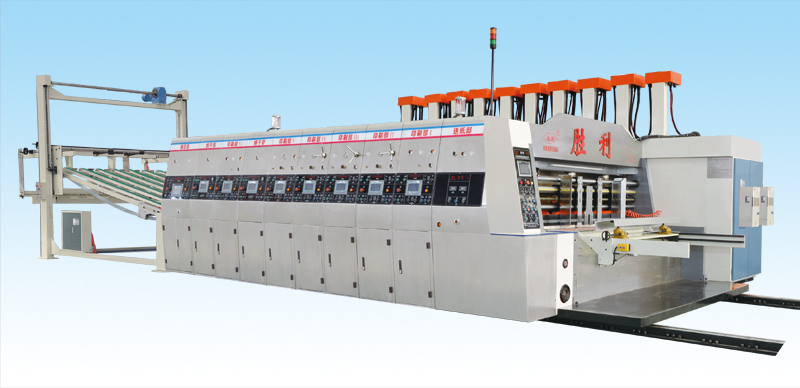

QYMW SERIES OF HIGH DEFINITION FLEXO INK PRINTING DIE CuTTING MACHINE

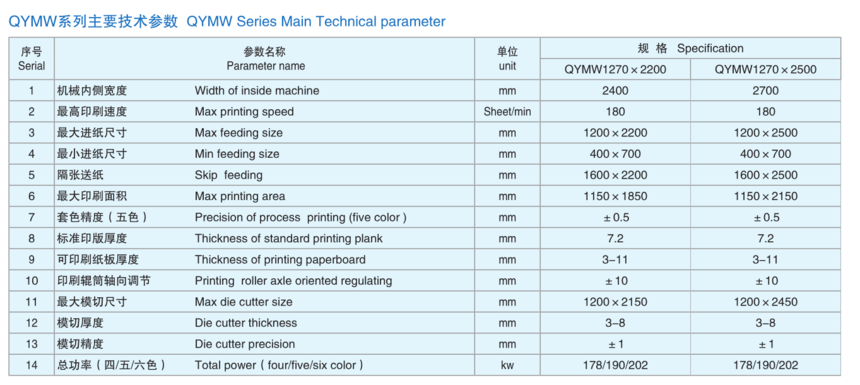

MAIN ENGINE OF PERFORMANCE AND FEATURES

* Machine in accordance with high precision, high efficiency, low consumption, reliability, and design and manufacturing;

* The transmission gear alloy steel, quenched and tempered, high-frequency quenching, grinding teeth together;

* using Keyless gapless swelling connections to ensure transmission accuracy, can achieve long-term print registration;

* Transmission automatic balancing device structure using the oil, oil remains balanced each unit;

* Independent drying system (Infrared drying system), the drying temperature can be adjusted according to need, optional uV drying system;

* The machine is equipped with free version can replace Slotting Die , to achieve a multi-purpose machine, reducing the slotting unit;

* The machine electrical features: central control, data synchronization, automatic recording, positive energy, high-speed positioning;

* The machine can be networked remote repair.

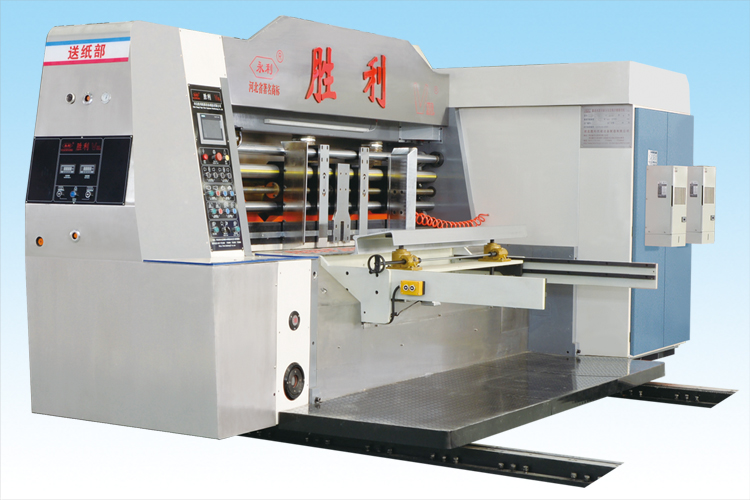

Feeding unit

(new type Avoid pressure servo front paper)

1. Adopt leading edge feeding system to adjust paper feeding length

according to cardboard   specifications.

2. Cardboard side pusher function.

3. Back shield up and down, moving is electric, adjusting easy and

accuracy.

4. Adopt double row feeding, large tension, make sure the

large size carton printing.

5. With skip feeding suction and return to zero device.

6. The host adopt synchronous belt transmission, transmission balance,

can absorb vibration, low noise, economic operation, etc

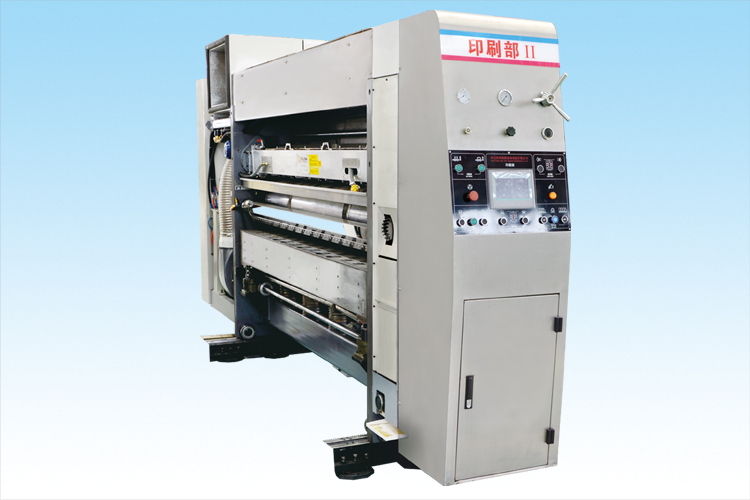

Printing unit

1. The table space with electric adjustment, PLC control digital display;

2. The feed rollers with new ceramic grinding process, minimal

 wear,friction,  long life;

3. Platen roller, using a seal between the baffle to ensure the

 vacuumpressure between the units, and the shaft attached to the

electromagnetic clutch brake mechanism;

4. Work table adopt high pressure centrifugal fan, by the inverter to

 control the size of the wind,  the bellows damper size can be automatically

controlled to achieve the role of trace amounts of correction;

5. Printing roll through dynamic and static balance correction, hard

chrome plating and grinding;

6. Roller racking stopper double protection, sliding with electric

adjustment, and an automatic return of function;

7. Ink with automatic leveling, automatic leveling shutdown ink to prevent

 ink drying affect print quality;

8. The doctor blade system adopts the domestic single blade system

(optional with American Sun Company doctor blade);

9. The two-way pneumatic diaphragm pumps, ink supply amount is controlled by PLC, automatic cleaning cycle and ink.

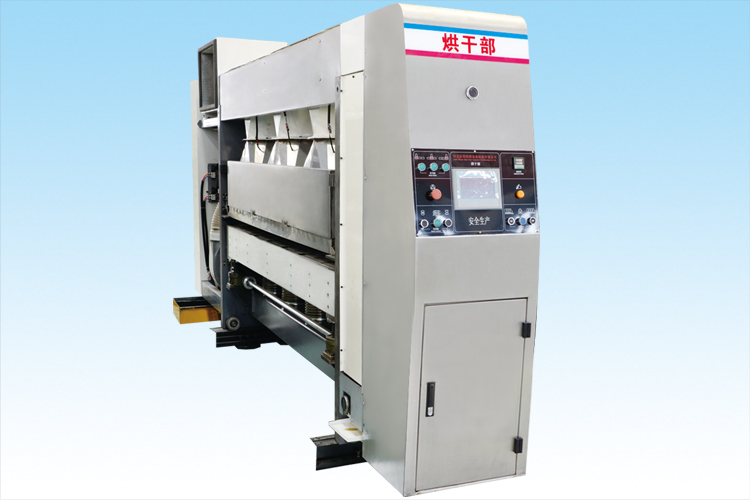

Drying unit

1. Independent drying system using infrared mode, fast drying water-based

 ink printing surface to avoid the phenomenon out of ink;

2. The dry area is divided into three sections, adjustable range, energy

 conservation;

3. Electrically adjustable clearance table and drying system;

4. The need to also increase the uV drying function, two for aqueous and

uV coatings, avoid dragging flower phenomenon occurs when die-cutting

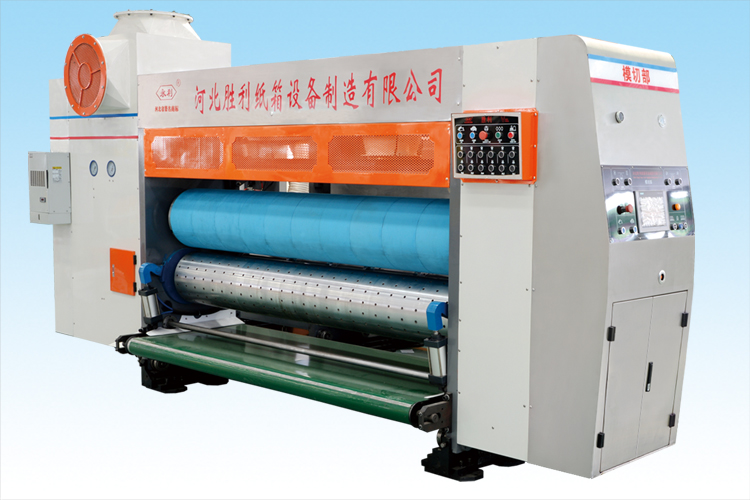

Die-cutting unit

1. The use of a separate double servo drive, make sure that the print sync;

2. The paper guide, lower shaft gap using two-way selflocking device,

digital display;

3. Die pads independently controlled servo roll (excellent roller

pads) may at any time amend the line speed to compensate;

4. Die rolls from Germany "Rexroth" servo motor control, reducing the

 transmission link error;

5. The phase adjustment device directly by the servo motor, the exact

place.

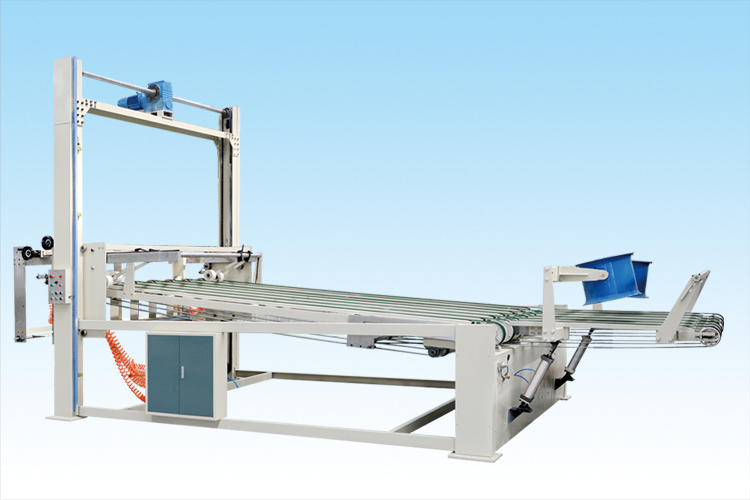

Stacker

1. Bin arm using pneumatic operation, manual control;

2. The bed platform lift, strong chain drive, the drive motor attached to

 the brake function;

3. Stacking, using a flat wrinkles climbing belt and steel clamping device,

so that the stacking order and tidy;

4. With pneumatic anti decline devices to ensure operator safety;

5. Hold paper feeder can be adjusted to hold the opening width, with a

 batch accumulation function;

6. The use of side shoot baffles to ensure more orderly stacked cardboard;

7. Electric enforce the use of PLC programming control, independent of the

 operating electric box;

8. Optional vibration stripping and lateral waste function.
