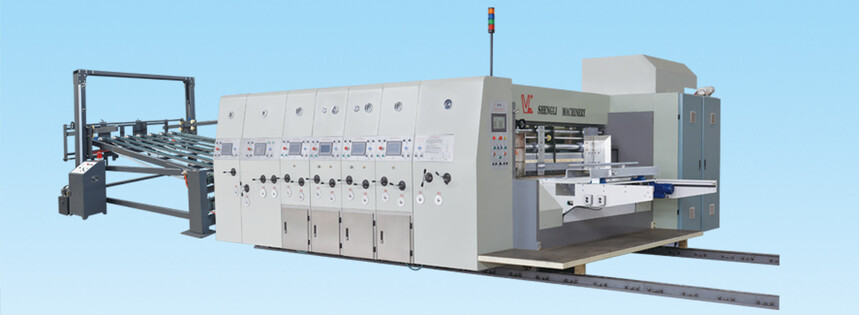

YKW SERIES OF HIGH SPEED FLEXO INK CORRUGATED PAPERBOARD PRINTING SLOTTING DIE CUTTING MACHINE

收藏
Detailed information


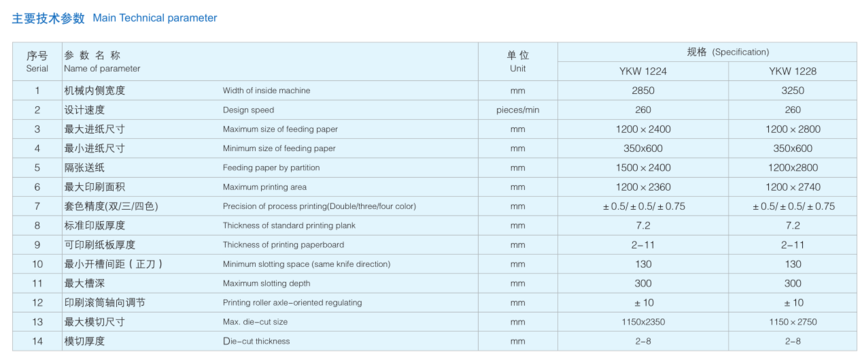

FUNCTION AND CHARACTERISTICS:

1. All the main electric appliances of the whole machine adopt the product of Schneider made in France.

2. Adopt lead-edge feeder system. (optional servo feed system)

3. Adopting straight gear driving, the gears are made from high frequency quenching and polishing-gear.

4. All axles of roller must be chrome-plating in order to increase the hardness.

5. The gears adopt shower type circular lubricating with oil balance function.

6. This machine adopts PLC & touching screen. Multi functional control, and frequency conversion control machine which are precise and reliable.

7. Automatically changes back to zero and correct the plate making.

8. Adopting the mould piece designing. The multi-color printing machines can be combined and linked in any way.

9. Flexo plate roller lateral adjustment adopt computer PLC control.

10. Cutter mould roller and soft roller adopt International standard size, with easy purchasing mould and cushion.

11. With compensating device to follow and compensate the speed of cushion roller, making sure that the sizes of the box and the cutter mould are the same.



Function of Feeding Department:

1. Adopt four-axle lead-edge feeding .even accuracy, thin and

 bend paperboard easy to be feed in .

2. It can send the paperboard continuously or by partition

equipped (with counting device )

3. Electric controlling the clutch of the machine platform and

 installed alams in order to assure the safe of the operating

personnel while the bell rings constaintly during marching .

4. The electrical machinery of the main engine starts the protective

device.(If the machine has not been locked.the main engine can not

start revolving.)

5. The separating electrical machinery starts the protective device.

(If the machine has been locked you can not start the separating

electrical machinery.)

6. It can adjusting feeding paper running ,relieve feeding glue roller’s

preesure .

7. dust collecting plant, brushes and the air blower can clear the dust and the paper scrap of the paperboard surface.

8. Left and right side blocking pland electric controll.

9. Back paperboard baffle up and down, front and back adopt electric adjustment.

10.The front baffle adopt handwheel to adjust the lift.





Function of Printing Department:

1. The printing roller and trace pressing roller adopt High quality steel

material.To grind the surface  and do the hard chrome plating.

2. To correct by dynamic balance,so the revolving is steady.

3. To load and unload the printing plating and step on the switch.Electric

 controlling the positive and negative revolving.

4. With emergency stop switch to ensure safety.

5. Phase-adjusting mechanism,planet type gear structure.

6. To adopt PLC inverter adjustment & touching screen to control the

 printing phase by the way of electric digital type 360 degrees adjustment.

Automatic plate correcting,automatic zero returning and high speed phase

adjusting.

7. Printing phase fixed device,electromagnetic brakes.While the machine

 separates or the phase is adjusting,the brakes can restrict the revolving

 of the machine platform and keep the fixed point of the original gears'

position.

8. The distance of the horizontal adjusting the printing roller is 20 mm.

9. Rubber roller:The surface of the roller is steel pipe which is packed by the wear-resisting rubber.

Adopting medium and high special grinding the rubber roller has effective ink-spreading.

10. Steel material net-grain roller:Steel pipe surface grinding.Press and make net-grain,hard chrome plating.

11. It sets up inking rollers rotation electric machine.Keeping main machine from stopping water and ink turning dry



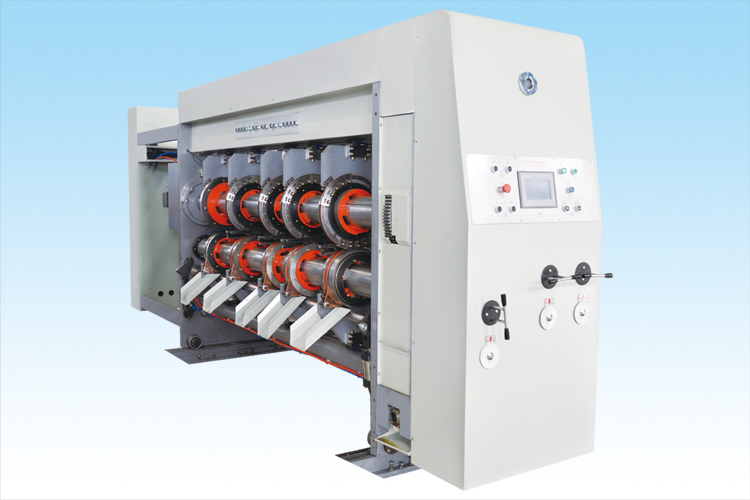

Function of Slotting Department:

1. It adopt single shaft double knife slotting ,pre-creasing then

 creasing, the pressing effection even better . It’s good for the

producing processing after gluing box follow-on equipment .

2. Upper pressing wheel wrap rubber spring outside , don’s

damage the paperboard .

3. The gap of the pre-creasing wheel,creasing wheel and the

slotting knife adopt squagging instruction .

4. Transfer of notch knife seat adopt ball bearing silk bar and

long life and high nicety.

5. The pressing wheel, slotting knife seat sway adjustment at the

same step . the PLC adjusting .

6. Notch knife width 7.0 MM, it adopt alloy steel material. After

 heat treatment and grinding,blade tartness and long using life.





Function of Rotary Die cutting Department:

1. Die-cut phase and the gap between the cutter mould rollers are

 both controlled by vcomputer,which can display but also can to set up.

2. The cushion roller adopts mechanical camdrum portable structure

(40mm).

3. The gap between the cushion roller and the cutter mould roller adopts

 electrical adjustment.

When stopping feeding paper,the soft roller will rise automatically;When

working,the soft roller will return to the working position.

4. Adopt compentating system.No matter how much the cushion diameter

 changes,the speed of the cushion compentate and follow automatically,

without adjustment by man.

5. With restoration for cushion after wear and tear.Keeping the surface of the

cushion smooth.

6. Optional free version slotting function.

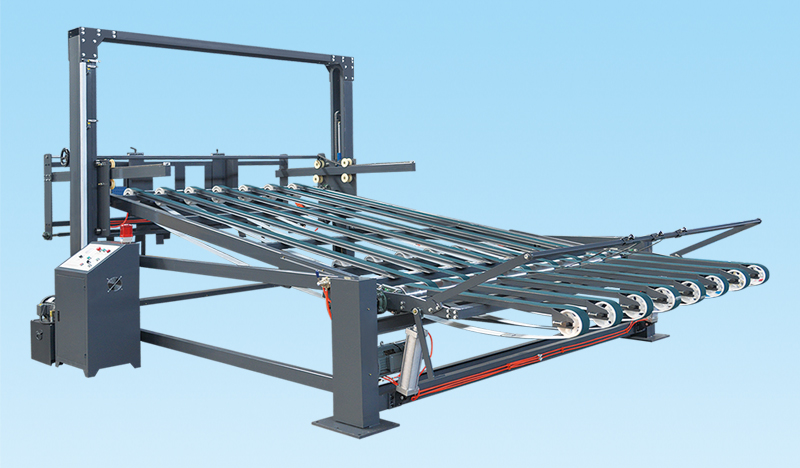

High speed hydraulic stacker:

1. Computer bed lifting safety design, hydraulic station double hydraulic

 cylinder drive to ensure the safety of operators.

2. Frequency conversion adjusting speed drive, it is easy linkage with

main motor.

3. Receiving paper belt adopts vacuum absorption transmission to ensure

 paperboard neatly.

4. Fan and brush together to clear scraps of slotting unit and die cutting

 unit.

5. Paperboard batches structure to ensure stack smoothly at high speed.

6. Leading paper pressing wheel ensures paperboard enter paper receiving

unit smoothly.

7. Pneumatic patting paperboard structure ensures paperboards to stack

neatly.

8. Stacker height: 1600mm.
