YKW SERIES OF HIGH SPEED FLEXO INK CORRUGATED PAPERBOARD PRINTING SLOTTING DIE CUTTING MACHINE

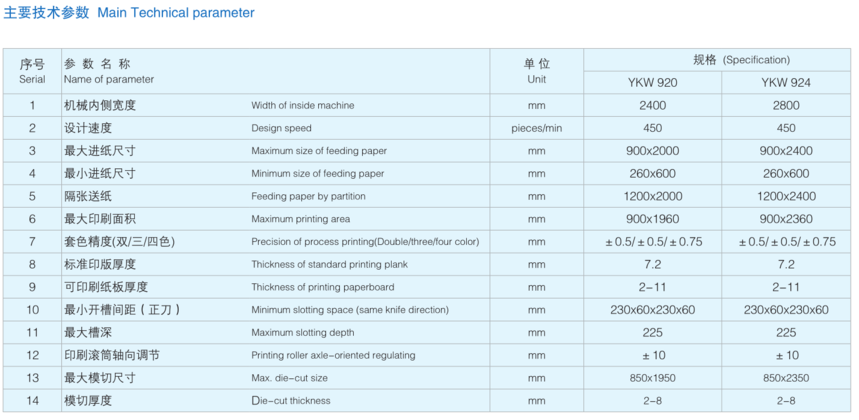

FUNCTION AND CHARACTERISTICS:

1. All the main electric appliances of the whole machine adopt the product of Schneider made in France.

2. Adopt lead-edge feeder system. (optional servo feed system)

3. Adopting straight gear driving, the gears are made from high frequency quenching and polishing-gear.

4. All axles of roller must be chrome-plating in order to increase the hardness.

5. The gears adopt shower type circular lubricating with oil balance function.

6. This machine adopts PLC & touching screen. Multi functional control, and frequency conversion control machine which are precise and reliable.

7. Automatically changes back to zero and correct the plate making.

8. Adopting the mould piece designing. The multi-color printing machines can be combined and linked in any way.

9. Flexo plate roller lateral adjustment adopt computer PLC control.

10. Cutter mould roller and soft roller adopt International standard size, with easy purchasing mould and cushion.

11. With compensating device to follow and compensate the speed of cushion roller, making sure that the sizes of the box and the cutter mould are the same.

Function of Feeding Department:

1. Feeding unit adopt mechanical lead edge feeding system.

2. Three shaft lead edge feeding. smooth and accurate .

3. Assistant suction(7.5KW), wind energy and press be controlled

 by transducer thereby adapt differ paper inquiry.

4. Front baffie clearance adjusting adopt protruding wheel config-

uration also convenience and apply.

5. Provide paper glue roller adopt elasticity and floac outfit. Not only

 ensure provide Veracity but also avoid press bad cardboard. Adjust

 capacity be controlled by electric machinery and showing nicety and

 trustiness by touch screen.

6. The up and down of the back baffle movement and front and back

 movement all controlled by the compressed airmotor, convenient and

 swift .

7. Eleclric control machine separation and reunion together with alarm

bell It will persist belling when traveling. Then insure safety of operator.

Function of Printing Department:

1. Can adopt the single doctor blade The system can ensure that the

 ink roller network points transferred to the plate, and can completely

 control the amount of ink in the ink, ink stability. To print finer lines,

 high DPI, print cardboard better, easy maintenance.

2. All roller adopt super steel. Adjust by transfer balance and made by

 plating chrome and skiving.

3. Printing phasic adopt PLCtouch screen control and electric data 360

 adjust(when dynamic and static state should adjust.)

4. Roller transverse adopt electric control and transverse adjust distance

 is 20MM It can should auto refer middle.

5. It has oil base ink monitor and control stop provide paper after alarm

without oil base ink.

6. Load and unioad space of printing. foot step switch control positive and

negative turning.

7. The gap of the adjustment of the transfer roll impressing roll rubber roll

 and the anilox roll adopt squagging instruction.

8. The feeding wheel adopt swift movement instruction . made the adjustment even swift and convenice .

Function of Slotting Department:

1. It adopt single shaft double knife slotting ,pre-creasing then creasing,

the pressing effection even better . It’s good for the producing processing

 after gluing box follow-on equipment .

2. Upper pressing wheel wrap rubber spring outside , don’s damage the

 paperboard .

3. The gap of the pre-creasing wheel,creasing wheel and the slotting knife

 adopt squagging instruction .

4. Transfer of notch knife seat adopt ball bearing silk bar and long life and

high nicety.

5. The pressing wheel, slotting knife seat sway adjustment at the same step .

the PLC adjusting .

6. Notch knife width 8.0 MM, it adopt alloy steel material. After heat treatment

 and grinding,blade tartness and long using life.

Function of Rotary Die cutting Department:

1. Die-cut phase and the gap between the cutter mould rollers are both

 controlled by computer, which can display but aslo can to set up.

2. The cushion roller adopts mechanical camdrum portable structure (40mm)

3. The gap between the cushion roller and the cutter mould roller adopts

 electrical adjustment. When stopping feeding paper. the soft will rise aut-

matically; When working ,the soft roller will return to the working position.

4. Adopt compentating system, No matter how much the cushion diameter

 changes. The speed of the cushion compentate and follow automatically ,

without adjustment by man.

5. With restoration for cushion after wear and tear ,Keeping the surface of

the cushion smooth.

Function of Stacker Department:

1. Computer bed lifting safety design, hydraulic station double hydraulic

cylinder drive to ensure the safety of operators.

2. Frequency conversion adjusting speed drive, it is easy linkage with

main motor.

3. Receiving paper belt adopts vacuum absorption transmission to ensure

 paperboard neatly.

4. Fan and brush together to clear scraps of slotting unit and die cutting unit.

5. Paperboard batches structure to ensure stack smoothly at high speed.

6. Leading paper pressing wheel ensures paperboard enter paper receiving

unit smoothly.

7. Pneumatic patting paperboard structure ensures paperboards to stack neatly.

8. Stacker height: 1600mm.
