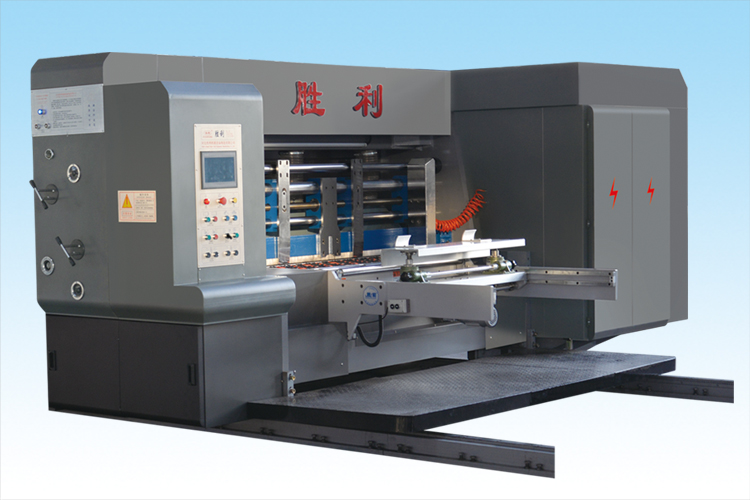

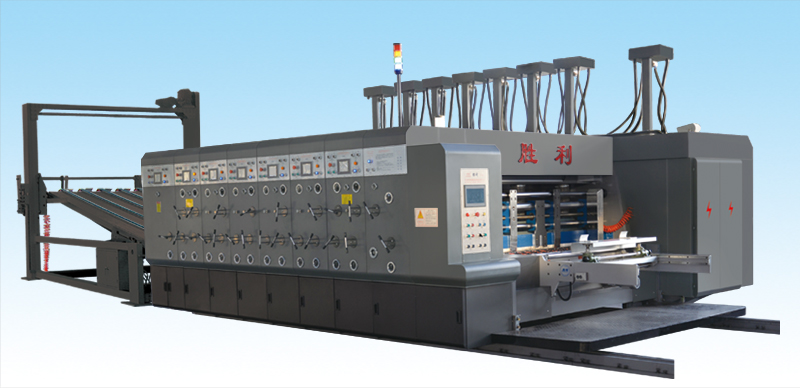

GYK SERIES OF HIGH SPEED FLEXO INK CORRUGATED PAPERBOARD PRINTING SLOTTING DIE CUTTING MACHINE

收藏
商品说明





FUNCTION AND CHARACTERISTICS:

1. All the main electric appliances of the whole machine adopt the product of Schneider made in France.

2. Adopt lead-edge feeder system.

3. Adopting helical gear driving, the gears are made from high frequency quenching and polishing-gear.

4. All axles of roller must be chrome-plating in order to increase the hardness.

5. The gears adopt shower type circular lubricating.

6. This machine adopts PLC & touching screen. Multi functional control, and frequency conversion control machine which are precise and reliable.

7. Automatically changes back to zero and correct the plate making.

8. Adopting the mould piece designing. The multi-color printing machines can be combined and linked in any way.

9. Flexo plate roller lateral adjustment adopt computer PLC control.

10. Cutter mould roller and soft roller adopt International standard size, with easy purchasing mould and cushion.

11. Optional single blade system.








Function of Feeding Department:

1. Adopt three-axle lead-edge feeding .even accuracy, thin and bend

paperboard easy to be feed in .

2. It can send the paperboard continuously or by partition equipped

 (with counting device )

3. Electric controlling the clutch of the machine platform and installed

alams in order to assure the safe of the operating personnel while the

 bell rings constaintly during marching .

4. The electrical machinery of the main engine starts the protective

device.(If the machine has not been locked.the main engine can not

 start revolving.)

5. The separating electrical machinery starts the protective device.

(If the machine has been locked you can not start the separating

 electrical machinery.)

6. It can adjusting feeding paper running ,relieve feeding glue roller’s preesure .

7. dust collecting plant, brushes and the air blower can clear the dust and the paper scrap

of the paperboard surface.

8. Left and right side blocking pland electric controll.

9. Back paperboard baffle up and down, front and back adopt electric adjustment.





Function of Printing Department:

1. The printing roller and trace pressing roller adopt High quality steel

material.To grind the surface and do the hard chrome plating.

2. To correct by dynamic balance,so the revolving is steady.

3. To load and unload the printing plating and step on the switch.Electric

controlling the positive and negative revolving.

4. The space of the printing & pressing roller can be adjusted by hand.

The scale panel shows the data.

5. Phase-adjusting mechanism,planet type gear structure.

6. To adopt PLC & touching screen to control the printing phase by the

way of electric digital type 360 degrees adjustment.Automatic plate

 correcting,automatic zero returning and high speed phase adjusting.

7. Printing phase fixed device,pneumatic brakes.While the machine

separates or the  phase is adjusting,the brakes can restrict the revolving

 of the machine platform and keep the fixed point of the original gears'

 position.

8. The distance of the horizontal adjusting the printing roller is 20 mm.

9. Rubber roller:The surface of the roller is steel pipe which is packed by the wear-resisting rubber.Adopting medium and high special

 grinding the rubber roller has effective ink-spreading.

10. Steel material net-grain roller:Steel pipe surface grinding.Press and make net-grain,hard chrome plating.

11. It sets up inking rollers rotation electric machine.Keeping main machine from stopping water and ink turning dry.

12. Optional single blade system.




Function of Slotting Department:

1. Slotting phase adjusting mechanism,planet type gear structure.

2. Slotting phase is controlled by PLC & touching screen and adjusted

 by the way of electric digital type 360 degrees.(It can be adjusted while

 revolving  and stopping.)

3. The space of the line-pressing wheel can be adjusted by hand.The scale

panel shows the adjusted data.

4. The space of the slotting knife-stand can be adjusted by hand.The scale

panel shows the adjusted data.

5. The width of the slotting knife is 7.0mm and made of alloy steel material.

Under heat treatment blade

grinding.hackles and double blades side repairing knife are very sharp and

of long using life.

※ Electrically type:The width of the slotting and the line-pressing four axle

adjusted by electrically synchronously.The height of paper chest four axle

adjusted by electrically synchronously.

※ Ordinary type:opening slot,pressing line,distance inserting board type.Four axles are adjusted by hand synchronously.Chest height

four knives by hand adjusted synchronously.









Function of Rotary Die cutting Department:

1. Die-cut phase and the gap between the cutter mould rollers are both

controlled by computer,which can display but also can to set up.

2. The cushion roller adopts mechanical camdrum

 portable structure(40mm).

3. The gap between the cushion roller and the cutter mould roller adopts

electrical adjustment. When stopping feeding paper,the soft roller will

 rise automatically;When working,the soft roller will return to the working

 position.

4. Adopt compentating system.No matter how much the cushion diameter

 changes,the speed of the cushion compentate and follow automatically,

without adjustment by man.

5. With restoration for cushion after wear and tear.Keeping the surface of t

he cushion smooth.

6. Optional free version slotting function










Function of Stacker Department:

1. Installed with safeguard mechanism the paper-receiving arm can be

 operated by hand or automatically in order to prevent the sudden

falling down of the paper-receiving arm for the safety of the operating

 personnel.

2. The rising and descending of the machine tool platform are driven by

the powerful chain.

3. The height of piling is 1600mm.

4. With the paperboard’s piling to the higher level the machine tool

platform automatically adjusts the tilting height.Lifting and descending

the electrical machinery.Equipped with the brake function,so the machine

tool can keep the fixed position to prevent falling down.

5. The organization of lift the paper by pneumatic motion.The paper

receiving tray will automatically open and catch the paperboard while

the paperboards are piled to the planned height.

6. The surface corrugated belt can prevent the sliding of the paperboard.
