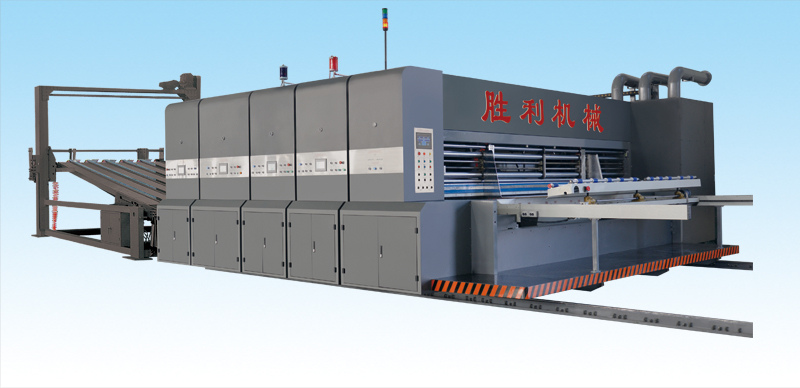

YKW SERIES OF HIGH SPEED FLEXO INK CORRUGATED PAPERBOARD PRINTING SLOTTING DIE CUTTING MACHINE

收藏

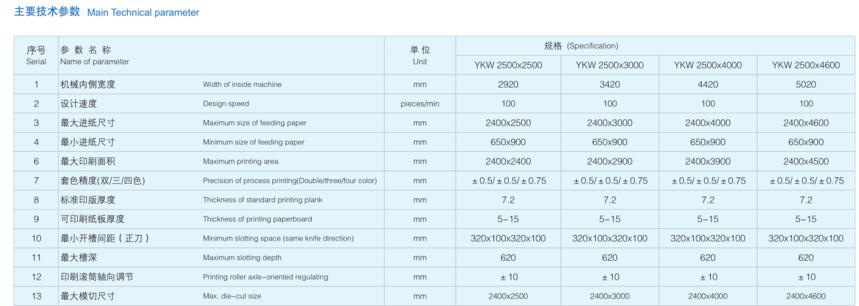

Detailed information



FUNCTION AND CHARACTERISTICS:

1. All the main electric appliances of the whole machine adopt the product of Schneider made in France.

2. Adopt lead-edge feeder system.

3. Adopting helical gear driving, the gears are made from high frequency quenching and polishing-gear.

4. All axles of roller must be chrome-plating in order to increase the hardness.

5. The gears adopt shower type circular lubricating.

6. This machine adopts PLC & touching screen. Multi functional control, and frequency conversion control machine which are precise and reliable.

7. Automatically changes back to zero and correct the plate making.

8. Adopting the mould piece designing. The multi-color printing machines can be combined and linked in any way.

9. can print seven layer corrugated paperboard with three A flute and honey comb paperboard.








1.jpgFunction of Feeding Department:

1. Adopt five-axle lead-edge feeding .even accuracy, thin and bend

paperboard easy to be feed in .

2. It can send the paperboard continuously or by partition equipped

 (with counting device )

3. Electric controlling the clutch of the machine platform and installed

 alams in order to assure the safe of the operating personnel while the

bell rings constaintly during marching .

4. The electrical machinery of the main engine starts the protective

device.(If the machine has not been locked.the main engine can not

start revolving.)

5. The separating electrical machinery starts the protective device.

(If the machine has been locked you can not start the separating

electrical machinery.)

6. It can adjusting feeding paper running ,relieve feeding glue roller’s preesure .

7. dust collecting plant, brushes and the air blower can clear the dust and the paper scrap

of the paperboard surface.

8. Left and right side blocking pland electric controll.

9. Back support-paper platform electric adjusted.

10. Paperboard feed gap is electric adjustment

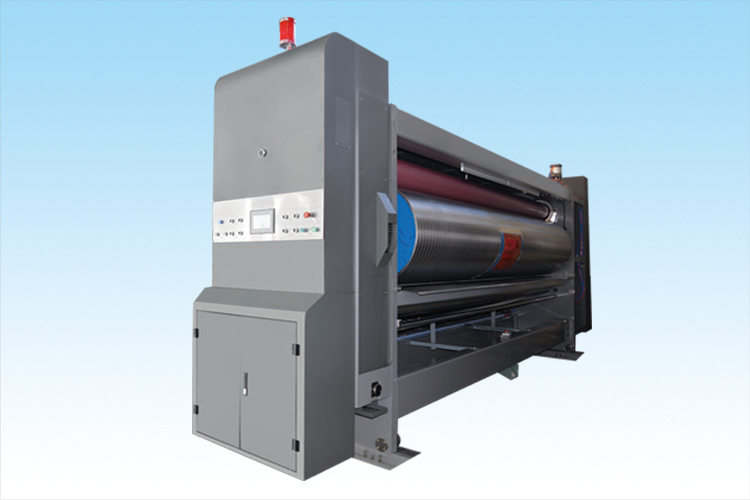

Function of Printing Department:

1. The printing roller and trace pressing roller adopt High quality steel

 material.To grind the surface and do the hard chrome plating.

2. To correct by dynamic balance,so the revolving is steady.

3. To load and unload the printing plating and step on the switch.Electric

controlling the positive and negative revolving.

4. The space of the printing & pressing roller can be adjusted by electric.

The scale panel shows the data.

5. Phase-adjusting mechanism,planet type gear structure.

6. To adopt PLC & touching screen to control the printing phase by the way

of electric digital type 360 degrees adjustment.Automatic plate correcting,

automatic zero returning and high speed phase adjusting.

7. Printing phase fixed device,pneumatic brakes.While the machine

separates or the phase is adjusting,thebrakes can restrict the revolving

of the machine platform  and keep the fixed point of the original gears'

position.

8. The distance of the horizontal adjusting the printing roller is 20 mm.

9. Rubber roller:The surface of the roller is steel pipe which is packed by the wear-resisting rubber.Adopting medium and high

 special grinding the rubber roller has effective ink-spreading.

10. Steel material net-grain roller:Steel pipe surface grinding.Press and make net-grain,hard chrome plating.

11. It sets up inking rollers rotation electric machine.Keeping main machine from stopping water and ink turning dry.

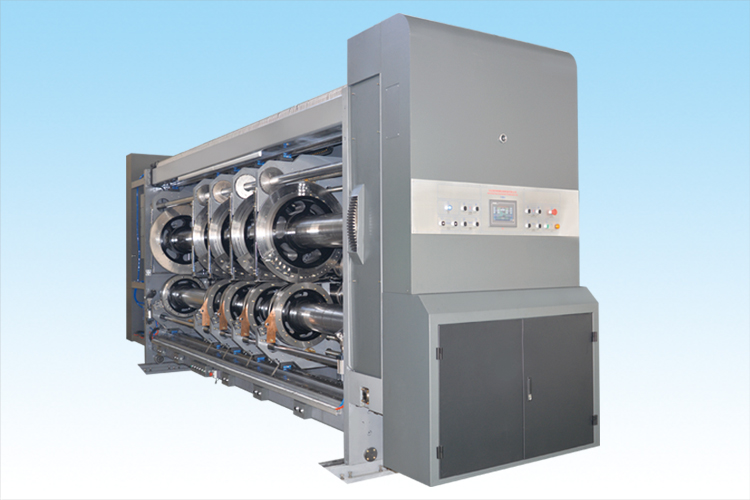

Function of Slotting Department:

1. Slotting phase adjusting mechanism,planet type gear structure.

2. Slotting phase is controlled by PLC & touching screen and adjusted

 by the way of  electric digital type 360 degrees.(It can be adjusted while

revolving and stopping.)

3. The creasing wheel gap adopt electric adjustment with the touch screen

 displays data.

4.The slotting knife seat gap adopt electric adjustment with the touch

screen displays data.

5. The slotting and the creasing distance four axle adjusted by

electrically  synchronously. The height of paper chest four axle

adjusted by electrically  synchronously.














Function of Rotary Die cutting Department:

1. Die-cut phase and the gap between the cutter mould rollers are

both controlled by computer,which can display but also can to set up.

2. The cushion roller adopts mechanical camdrum portable

 structure(40mm).

3. The gap between the cushion roller and the cutter mould roller

 adopts electrical adjustment.

When stopping feeding paper,the soft roller will rise automatically;When

working,the soft roller will return to the working position.

4. Adopt compentating system.No matter how much the cushion diameter

 changes,the speed of the cushion compentate and follow automatically,

without adjustment by man.

5. With restoration for cushion after wear and tear.Keeping the surface of

 the cushion smooth.










Function of Stacker Department:

1. Installed with safeguard mechanism the paper-receiving arm can

 be operated by hand or automatically in order to prevent the sudden

 falling down of the paper-receiving arm for the safety of the operating

personnel.

2. The rising and descending of the machine tool platform are driven by

 the powerful chain.

3. The height of piling is 1600mm.

4. With the paperboard’s piling to the higher level the machine tool

 platform automatically adjusts the tilting height.Lifting and descending

 the electrical machinery. Equipped with the brake function,so the machine

 tool can keep the fixed position to prevent falling down.

5. The organization of lift the paper by pneumatic motion.The paper

receiving tray will automatically open and catch the paperboard while

 the paperboards are piled to the  planned height.

6. The surface corrugated belt can prevent the sliding of the paperboard.
