YKW/GYK SERIES OF HIGH SPEED FLEXO INK CORRUGATED PAPERBOARD PRINTING SLOTTING DIE CUTTING MACHINE

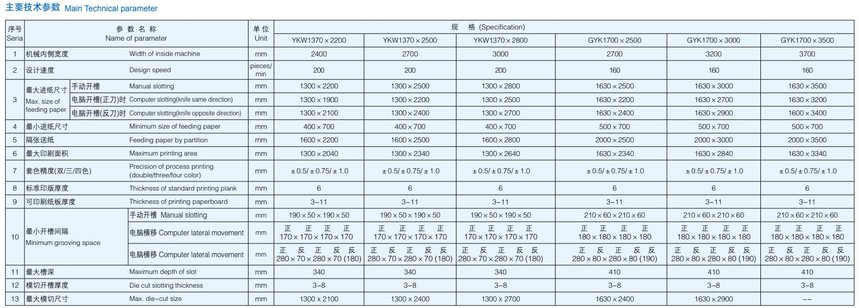

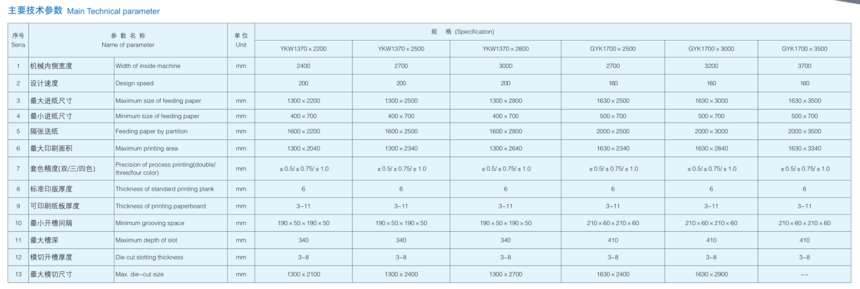

FUNCTION AND CHARACTERISTICS:

1. All the main electric appliances of the whole machine adopt the product of Schneider made in France.

2. Adopt wheel lead-edge feeder system.

3. Adopt helical gear driving,the gears are made from high frequency quenching and after grinding processing.

4. The gears adopt shower type circular lubricating and with oil balance function.

5. Adopt inverter motor to drive and adjust the speed by frequency conversion within the certain scope.

6. Printing slotting and die cutting electric phase adjusting mechanism.Planet type gear structure 360 degrees.(It can be adjusted while revolving and

stopping).resolution response rate is 0.2mm.

7. Adopting the mould piece designing.The multi-color printing machines can be combined and linked in any way.

8. Each unit adopt touch screen control.

Function of Feeding Department:

1. Paperboard feeding adopt leading edge, paperboard

feeding is more accurate.

2. It can send the paperboard continuously or by partition

equipped (with counting device ).

3. Electric controlling the clutch of the machine platform and

 installed alams in order to assure the safe of the operating

 personnel while the bell rings constaintly during marching .

4. The electrical machinery of the main engine starts the

 protective device.(If the machine has not been locked.the

main engine can not start revolving.)

5. The separating electrical machinery starts the protective d

evice.(If the machine has been locked you can not start the

separating electrical machinery.)

6. It can adjusting feeding paper running ,relieve feeding glue roller’

s preesure .

7. dust collecting plant, brushes and the air blower can clear the dust and the paper scrap of the paperboard surface.

8. Back baffle、left and right baffle adopt electric controll.

9. With side pusher function.

Function of Printing Department:

1. The printing roller and trace pressing roller adopt High quality steel

do material. To grind the surface and the hard chrome plating.

2. All drive roller adopt dynamic balance correction, so the revolving

 is steady.

3. To load and unload the printing plating and step on the switch.

 Electric controlling the positive and negative revolving.

4. With ink shortage alarm function.

5. Phase-adjusting mechanism, planet type gear structure, electric

 digital control.

6. Printing phase fixed device, pneumatic brakes.While the machine

 separates or the phase is adjusting, the brakes can restrict the revolving

of the machine platform and keep the fixed point of the original

gears’position.

7. Rubber roller:The surface of the roller is steel pipe which is packed by

the wear-resisting rubber. Adopting medium and high special grinding the

 rubber roller has effective ink-spreading optional doctor blade system.

8. The oil roller adopts high precision hard chrome plating net-grain roller.

9. Installed with ink roller rotation electrical machinery to the main engine’s drying up while its stopping.

10. The lateral movement of the plate roller adopt electric adjustment.

Function of Slotting Department:

1. Slotting phase adjusting mechanism, planet type gear structure,

 electric digital control.

2. Opening slot, pressing line, distance putting board type, four axles

must be adjusted by hand synchronously.Chest height must be adjusted

by hand synchronously.

3. The width of the slotting knife is 7.0mm and of alloy steel material.

Under heat treatment blade grinding, hackles and double blades side

repairing knife are very sharp and long using life.

4. The part of slotting can install the punches and buttons beating

equipments.

5. Optional four knives mould die cutting unit.

6. Optional computer PLC to adjust the carton size.

Function of Rotary Die cutting Department:

1. The cushion roller adopts mechanical camdrum portable

 structure(40mm).

2. The gap between the cushion roller and the cutter mould roller

 adopts electrical adjustment.When stopping feeding paper,the soft

roller will rise automatically;Whenworking,the soft roller will return to

the working position.

3. Adopt compentating system.No matter how much the cushion

diameter changes,the speed of the cushion compentate and follow

automatically,without adjustment by man.

4. With restoration for cushion after wear and tear.Keeping the surface

 of the cushion smooth.

5. Optional free version slotting function.

Function of Stacker Department:

1. Installed with safeguard mechanism the paper-receiving arm can

be operated by hand or automatically in order to prevent the sudden

falling down of the paperreceiving arm for the safety of the operating

personnel.

2. The rising and descending of the machine tool platform are driven

by the powerful chain.

3. The height of piling is 1600mm.

4. With the paperboard’s piling to the higher level the machine tool

 platform automatically adjusts the tilting height.Lifting and descending

the electrical machinery.Equipped with the brake function,so the machine

 tool can keep the fixed position to prevent falling down.

5. The organization of lift the paper by pneumatic motion.The paper receiving

 tray will automatically open and catch the paperboard while the paperboards

are piled to the planned height.

6. The surface corrugated belt can prevent the sliding of the paperboard.
