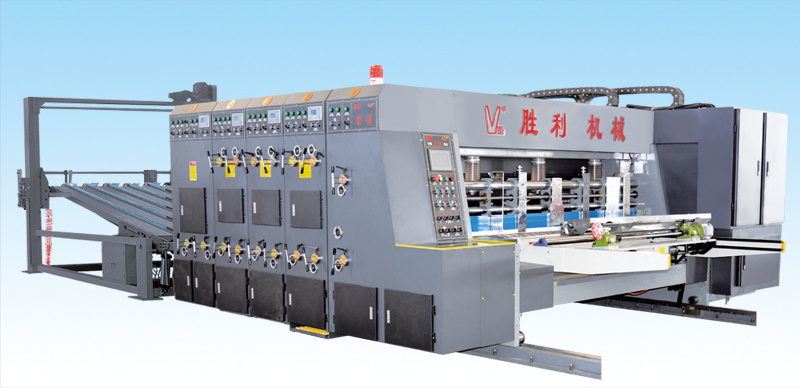

GYK-A SERIES OF FLEXO INK CORRUGATED PAPERBOARD PRINTING PRESSING SLICING CORNER SLOTTING

收藏
Detailed informa


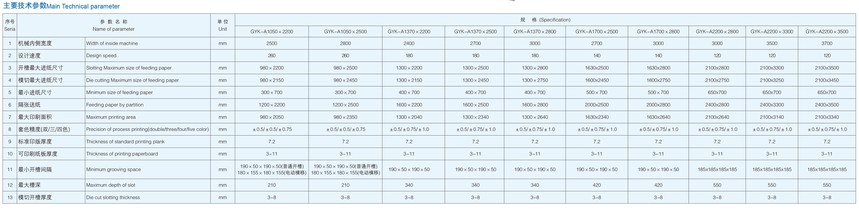

FUNCTION AND CHARACTERISTICS:

1. The electric appliances of a whole machine adopt the excellent product by the domestic products.

2. Adopt lead-edge feeder system.

3. Adopting helical gear driving,the gears are made from high frequency quenching.

4. The gears adopt shower type circular lubricating.

5. Adopt inverter motor drive.

6. Printing slotting and die cutting electric phase adjusting mechanism.Planet type gear structure 360 degrees.(It can be adjusted while revolving and stopping).resolution response rate is 0.2mm.

7. Adopting the mould piece designing.The multi-color printing machines can be combined and linked in any way


1631428108232167.jpgFunction of Feeding Department:

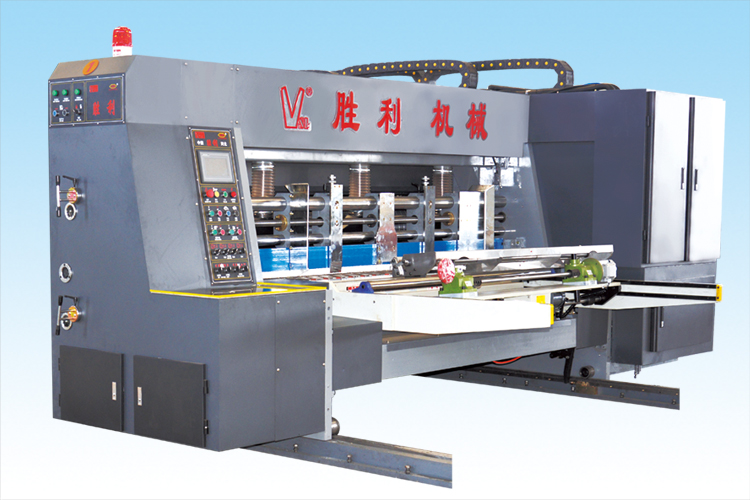

1. Adopt lead-edge feeding .even accuracy, thin and bend paperboard

 easy to be feed in .

2. It can send the paperboard continuously or by partition equipped

 (with counting device ).

3. Electric controlling the clutch of the machine platform and installed

alams in order to assure the safe of the operating personnel while the

bell rings constaintly during marching .

4. The electrical machinery of the main engine starts the protective device.

(If the machine has not been locked.the main engine can not start revolving.)

5. The separating electrical machinery starts the protective device.(If the

machine has been locked you can not start the separating electrical machinery.)

6. It can adjusting feeding paper running ,relieve feeding glue roller’s preesure .

7. Dust collecting plant, brushes and the air blower can clear the dust and the paper

scrap of the paperboard surface.

8. Left and right side blocking pland electric controll.

9. Back support-paper platform up and down, front and back adobt electric adjustment.


Function of Printing Department:1631428215561231.jpg

1. The printing roller and trace pressing roller adopt High quality steel material. To

 grind the surface and do the hard chrome plating.

2. To correct by dynamic balance, so the revolving is steady.

3. To load and unload the printing plating and step on the switch. Electric controlling

 the positive and negative revolving.

4. The space of the printing & pressing roller is adjusted by hand.The scale panel

 shows the data.

5. Phase-adjusting mechanism, planet type gear structure.

6. Printing phase fixed device, pneumatic brakes. While the machine separates or

 the phase is adjusting, the brakes can restrict the revolving of the machine platform

and keep the fixed point of the original gears’position.

7. Rubber roller: The surface of the roller is steel pipe which is packed by the wear-resisting

rubber. Adopting medium and high special grinding the rubber roller has effective ink-

spreading.

8. The oil roller adopts high precision hard chrome plating net-grain roller.

9. Installed with ink roller rotation electrical machinery to the main engine’s drying

 up while its stopping

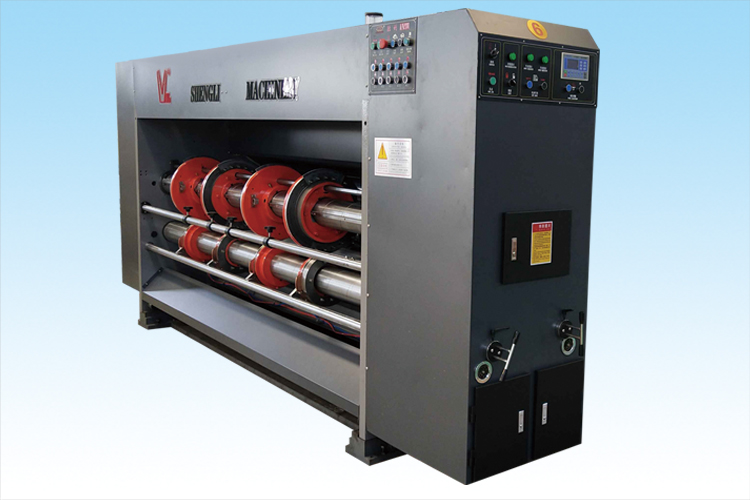

Function of Slotting Department:

1. Slotting phase adjusting mechanism,planet type gear structure.

2. The space of the line-pressing wheel is adjusted by hand.The scale

panel shows the adjusted data.

3. The space of the slotting knife-stand is adjusted by hand. The scale

 panel shows the adjusted data.

4. Opening slot,pressing line,distance putting board type,four axles must

 be adjusted by hand synchronously.Chest height must be adjusted by

hand synchronously.

5. The width of the slotting knife is 7.0mm and of alloy steel material.Under

heat treatment blade grinding,hackles

and double blades side repairing knife are very sharp and long using life.

6. The part of slotting can install the punches and buttons beating equipments.

7. Optional four knives mould die cutting unit.

8. Optional button control electric traverse mechanism.

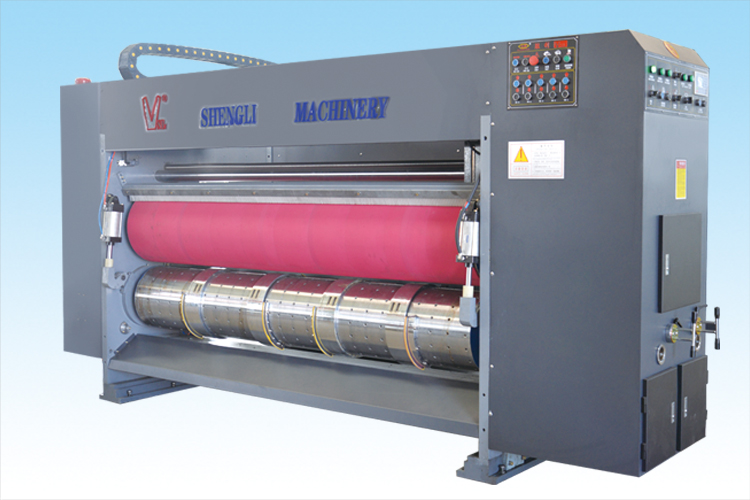

1631428436283108.jpgFunction of Rotary Die cutting Department:

1.The cushion roller adopts mechanical camdrum portable structure(40mm).

2.The gap between the cushion roller and the cutter mould roller adopts

electrical adjustment.When stopping feeding paper,the soft roller will rise

automatically;When working,the soft roller will return to

the working position.

3.Adopt compentating system.No matter how much the cushion diameter

 changes,the speed of the

cushion compentate and follow automatically,without adjustment by man.

4.With restoration for cushion after wear and tear.Keeping the surface of the

cushion smooth.

5. Optional free version slotting function

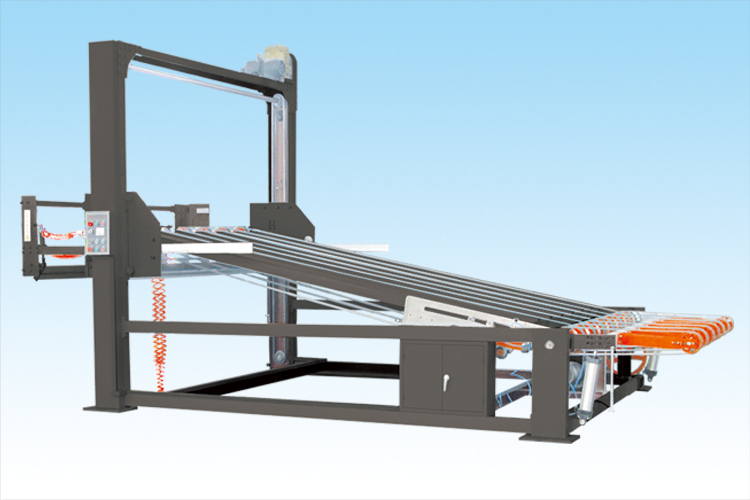

Function of Stacker Department:

1.Installed with safeguard mechanism the paper-receiving arm can be operated

 by hand or automatically in order to prevent the sudden falling down of the

 paperreceiving arm for the safety of the operating personnel.

2.The rising and descending of the machine tool platform are driven by the

powerful chain.

3.The height of piling is 1600mm.

4.With the paperboard’s piling to the higher level the machine tool platform

automatically adjusts the tilting height. Lifting and descending the electrical

machinery. Equipped with the brake function, so the machine tool can keep the

fixed position to prevent falling down.

5.The organization of lift the paper by pneumatic motion.The paper receiving tray

will automatically open and catch the paperboard while the paperboards are piled

to the planned height.

6.The surface corrugated belt can prevent the sliding of the paperboard.
