WJ Series High Speed Corrugated Cardboard Production line

收藏
Detailed information










WJ Series High Speed Corrugated Cardboard Production line

Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard.The 3ply,5ply,7ply,and multi-function corrugated cardboard production line

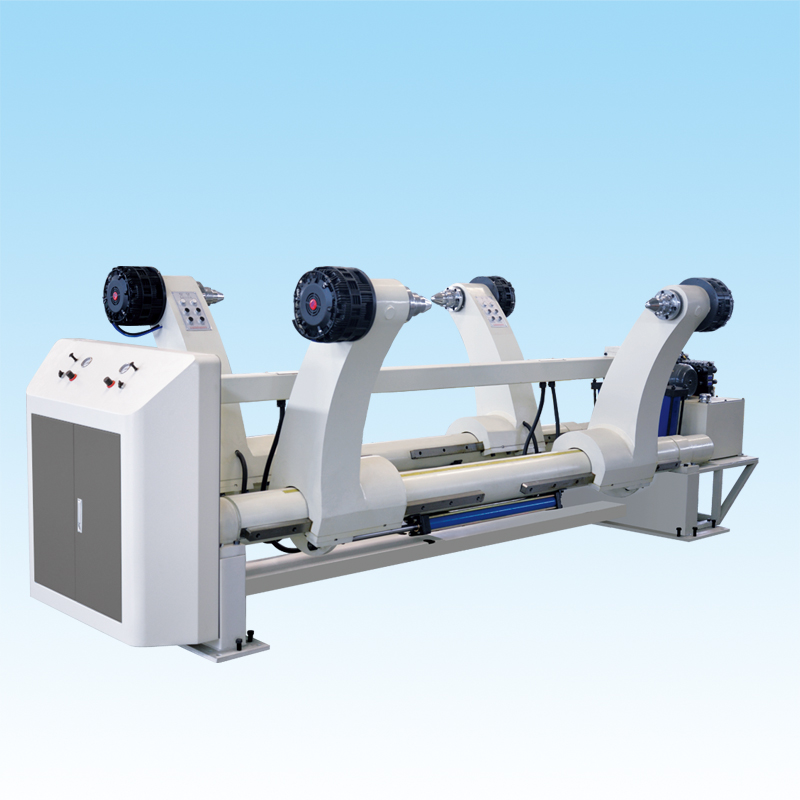

 mainly consist of the following equipment: Mill Roll Stand, surface paper(core-paper) preheater.Single facer, Conveying Span Bridge.Glue Application Machine, Double Facer, Rotary

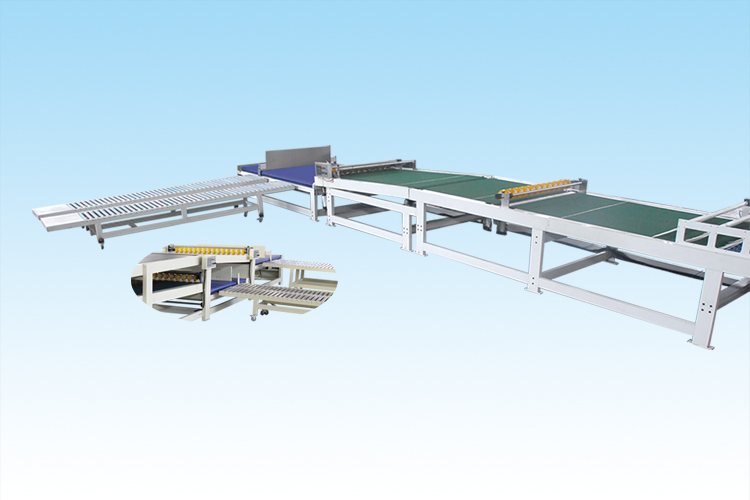

Shear, Slitter Scorer, Cut-off,Conveyerand Stacker, Steam heating System, Air compression system and Glue Making System, etc.Different models and quantities equipments can com-

pose different models and grades 3ply,5ply,7ply corrugated paperboard production line. On the base of understanding the requirements of the customers and the advanced skills at

home and abroad, our company has developed and designed these production lines with the speed 120-300m/min; the paper width 1800-2800mm and A/C/B/E four flutes for custo-

mer to choose from, the flute shape is UV shape and more like V shape.




1: stands for the 3  ply corrugated cardboard production line

2: stands for the 5  ply corrugated cardboard production line

3: stands for the 7  ply corrugated cardboard production line











KDW6 Cassette double corrugated rollers fast change single facer machine

* Fast changing corrugated rollers in cassette, hydraulic trolley carries

corrugated rollers cassette to single facer, reduce the time of changing

 job into 20 minutes.

* Up and down corrugated rollers are made of high quality chromium

 molybdenum alloy steel, and are through heat treatment to strengthen

 the hardness, thesurface of corrugated rollers is  through grinding and

coated with tungsten carbide.

* Corruated roller diameter 408mm,big and small roller design, two sets

 corrugated rollers are installed in cassette which is installed at bottom

of single facer ,this design drops the center of gravity to reduce vibra-

tion and prevent sensitive resonance velocity. Cassettes can be changed

in standard size without extraadjustment.

* Unique vacuum suction design with negative pressure, automatically

clear the glue blocks to prevent gas hole plugging and make noise low,

 it meet standard requirements.

* Glue roller and doctor roller are design as group, move forward and back in horizontal direction  by hydraulic, can move out together, easy to clear maintenance

and repair. Electric adjustment of glue device, equipped with core paper humidity device.

* The gap between glue roller and down corrugated roller, pressure roller and down corrugated roller are adjusted by electric motor synchronously and equipped

with mechanical protection device.

* Equipped with pre-heating cylinder which is rotating automatically driven by inverter motor, diameter is 700mm and equipped with electric wrap angle adjustment.

* Equipped with core paper spray device.

* Quantity of glue can be adjusted by computer or manual. According to the different speed, quality of raw material etc factors input parameter in advance on

through the touch screen, then the PLC can adjust the quantity of glue reasonably to improve the quality of corrugated cardboard.

* Driven by standard inverter motor and universal joint, main drive motor adopts high efficiency finverter motor to save energy.

*  Up corrugated roller and pressure roller lifting up and down, glue unit moving are locked by hydraulic device.

* Glue roller, doctor roller, pre-heating roller and other paper guiding rollers surface are through hard chromed, grinding and polishing treatment.

* Electric eye tracking device is optional, glue roller can move out automatically when paper is broken.

* Design speed: 300m/min, Working width 2500mm、2800mm.






3.jpgKFW3/KFW4/KFW5 Cassette double corrugated rollers fast change

 single facer machine

* Fast changing corrugated rollers in cassette, hydraulic trolley carries

corrugated rollers cassette  to single facer, reduce the time of changi-

ng job into 20 minutes.

* Up and down corrugated rollers are made of high quality chromium

 molybdenum alloy steel,  and are through heat treatment to strengt-

hen the hardness, the surface of corrugated rollers is through grind-

ing and coated with tungsten carbide.

* Corruated roller diameter KFW3:φ360mm,KFW4:φ380mm,

KFW5:φ410mm, big and small roller design, two sets corrugated

 rollers are installed in cassettewhich is installed at bottom of single

 facer , this design drops the center of gravity to reduce vibration and

prevent sensitive resonance velocity. Cassettes can be changed in

standard size without extra adjustment.

* Unique vacuum suction design with negative pressure, automatically

 clear the glue blocks to prevent gas hole plugging and make noise low,

 it meet standard requirements.

* Glue roller and doctor roller are design as group, move forward and back

 in horizontal direction by hydraulic, can move out together, easy to clear

maintenance and repair. Electric adjustment of glue device, equipped with

 core paper humidity device.

* The gap between glue roller and down corrugated roller, pressure roller

and down corrugated  roller are adjusted by electric motor synchronously

 and equipped with mechanical protection device.

* Equipped with pre-heating cylinder which is rotating automatically driven

 by inverter motor, diameter is 600mm and equipped with electric wrap

angleadjustment.

* Quantity of glue can be adjusted by computer or manual. According to the

 different speed, quality  of raw material etc factors input parameter in adva-

nce onthrough the touch screen, then the PLC can adjust the quantity of glue

reasonably to improve  the quality of corrugated cardboard.

* Driven by standard inverter motor and universal joint, main drive motor

adopts high efficiency finverter motor to save energy.

*  Up corrugated roller and pressure roller lifting up and down, glue unit moving are locked  by hydraulic device.

* Glue roller, doctor roller, pre-heating roller and other paper guiding rollers surface are through hard chromed, grinding and polishing treatment.

* Electric eye tracking device is optional, glue roller can move out automatically when paper is broken.

* KFW3 design speed: 200m/min,working width 1800mm, 2200mm. KFW4 design speed: 200m/min,working width 2200mm、2500mm.

KFW5 design speed: 300m/min, working width 2500mm.





4.jpgKSW5 Cassette double corrugated rollers fast change single

 facer machine

* Unique structural design has advanced innovation and practicality. Based

on advanced

technology from Europe, We supply unmatched function performance and

innovative solution to our clients.

* One single facer install two sets corrugated rollers in cassette, adopt

 servo motor control with rotary type to change corrugated roller flute,

no need to cut the surface paper when change flute, it can fast change

the other flute of corrugated rollers in one minute, and resume to pro-

duce in 2-3 minutes without stopping machine.

* Fast changing corrugated rollers in cassette, hydraulic trolley carries

 corrugated rollers cassette to single facer, reduce the time of changing

job into 20 minutes.

* Up and down corrugated rollers are made of high quality chromium

molybdenum alloy steel,  and are through heat treatment to strengthen

the hardness, the surface of corrugated rollers is  through grinding and

coated with tungsten carbide.

* Corruated roller diameter φ410mm, big and small roller design, two

sets corrugated rollers are installed in cassette which is installed at bottom

of single facer , this design drops the center of gravity to reduce vibration

and prevent sensitive resonance velocity. Cassettes can be changed in

standard size without extra adjustment.

* Unique vacuum suction design with negative pressure, automatically clear

 the glue blocks to prevent gas hole plugging and make noise low, it meet

 standard requirements.

* Glue roller and doctor roller are design as group, move forward and back

 in horizontal direction by hydraulic, can move out together, easy to clear

maintenance and repair. Electric adjustment of glue device, equipped with

core paper humidity device.

* The gap between glue roller and down corrugated roller, pressure roller and down corrugated

 roller are adjusted by electric motor synchronously and equipped with mechanical protection device.

* Equipped with pre-heating cylinder which is rotating automatically driven by inverter motor, diameter is 600mm and equipped with electric wrap angle adjustment.

* Quantity of glue can be adjusted by computer or manual. According to the different speed, quality  of raw material etc factors input parameter in advance on through

the touch screen, then the PLC can adjust the quantity of glue reasonably to improve the quality of corrugated cardboard.

* Driven by standard inverter motor and universal joint, main drive motor adopts high efficiency finverter motor to save energy.

*  Up corrugated roller and pressure roller lifting up and down, glue unit moving are locked by hydraulic device.

* Glue roller, doctor roller, pre-heating roller and other paper guiding rollers surface are through hard chromed, grinding and polishing treatment.

* Electric eye tracking device is optional, glue roller can move out automatically when paper is broken.

* Design speed: 300m/min,

* Working width: 2500mm.





SDW1/SDW3 Type Double Corrugated Group Rollers Fast Change Single Facer

* The single facer machine install two groups corrugated rollers at the same time,in 15-30 seconds fast change to any group of corrugated roller. it is no needs to stop machine and

can resume production in 2-3 minutes.

* Without paste fork negative pressure and inner vacuum type, both up and down corrugated rollers adopt high quality Cr-Mo alloy steel after heat treatment to improve the

hardness,the surface of corrugated rollers is through grinding and coated with tungsten carbide.

* Corrugated roller diameter is Φ320mm、Φ360mm, big and small roller design, corrugated rollers and both ends bearing seats can hang together, it is easy change roller

 and decrease repairing time.

* Adopt hydraulic spin to replace corrugated rollers, it does not need to cut surfacer paper when replace corrugated rollers.

* Glue roller and even glue roller are one unit with oil pressure adjust ,it lead by rail and can slide out, so it is easy maintenance. The electric adjustment for glue area with

core paper spray device.

* Gaps of Gule roller and down corrugated roller, pressure roller and down corrugated roller adopt motor synchronous control with mechanical protective device.

* Glue thickness adopt micro computer and manul control, it can input parameter through touch screen at the micro computer mode according to different speed, paper

quality andother factors,  the PLC will automatic adjust glue thickness and improve the paperboard quality.

* Independent gear box drive with three output shaft, cardon joint transmission design, gear material adopt high quality alloy steel after heat treatment to improve

hardness, it adopts helical  gear design, gear surface adopt grinding process, the main motor adopt high speed inverter motor, it save energy.

* Up corrugated roller, pressure roller goes up and down, glue organization movement adopt hydraulic control to lock.

* Surfacer of pasting glue roller,even glue roller,preheating roller and other leading paper rollers adopts grinding,polishing and hard chromed processing.

* The optional electric eye tracking device, the glue roller automatically exit when paper break.

* Design speed: 150m/min、200m/min, valid working width: 1800mm、2200mm.







DW Single facer machine

* Adsorption type, corrugated roll adopt high quality 48CrMo alloy steel.

* Diameter of corrugated roller 280mm, corrugated roller and two end bearing seat module design, convenient replacement of corrugated roller.

* Glue part adopt side out design, more convenient maintenance.

* Electric separation, glue automatic adjustment with the machine speed control.

* Independent drive box, universal joint drive, frequency conversion drive.

* Design speed :  120m/min.

* Working width :  180mm.

DW1 Type single facer

* Fingerless vacuum absorption without paste ,Corrugated roll adopt High quality chrome molybdenum steel making more hardness after heat~treating .

* Diameter of the corrugated rollers are 320mm, big and small roller design, both corrugated rollers and two ends bearings all set assembly. quick and convenience,

Save repairing time.

* Glue roller and roller control is designed to slip into a group of rail disassembly, electric adjustment of every plasma unit, optionally core paper spray device.

* Microcomputer control or manual control by the amount of glue, micro~computer control according to different speed, base paper quality and other factors pre~operation

through the

 touch~screen input parameters, PLC automatically adjust a reasonable amount of glue. Improve board quality.

* Independent three~axis drive box output, universal joint transmission design, the gear selection of high quality alloy steel heat treatment enhanced the hardness, the use

of helical gear design, the tooth surface by the grinding process processing. Main motor variable frequency speed motor used to save energy.

* On the corrugating roll and pressure roll down, glue institutions move to pressure control.

* Surfacer of pasting glue roller,even glue roller,preheating roller and other leading paper rollers adopts grinding,polishing and hard chromed processing.

* Optional electronic eye tracking devices, automatic roll~off adhesive paper exit.

* Design speed:150m/min.

* Valid working width:1800mm.

DW3/4 Type single facer

* Fingerless vacuum absorption without paste ,Corrugated roll adopt High quality chrome molybdenum steel making more hardness after heat~treating .

* Diameter of the corrugated rollers are 360/380mm, big and small roller design, both corrugated rollers and two ends bearings all set assembly. quick and convenience,

Save repairing time.

* Glue roller and roller control is designed to slip into a group of rail disassembly, electric adjustment of every plasma unit, optionally core paper spray device.

* The gluing roll and the under corrugated roll, the pressing roll and the under roll 's gap adopt gear motor at the same adjusting. and with mechanical protected system.

* Microcomputer control or manual control by the amount of glue, micro~computer control according to different speed, base paper quality and other factors pre~operation through

the touch~screen input parameters, PLC automatically adjust a reasonable amount of glue. Improve board quality.

* Independent three~axis drive box output, universal joint transmission design, the gear selection of high quality alloy steel heat treatment enhanced the hardness, the use of helical

gear design, the tooth surface by the grinding process processing. Main motor variable frequency speed motor used to save energy.

* On the corrugating roll and pressure roll down, glue institutions move to pressure control.

* Surfacer of pasting glue roller,even glue roller,preheating roller and other leading paper rollers adopts grinding,polishing and hard chromed processing.

* Optional electronic eye tracking devices, automatic roll~off adhesive paper exit.

* Design speed:200m/min;Working width:DW3:1800mm,DW4:2200mm、2500mm

DW5 Type single facer

* Fingerless vacuum absorption without paste ,Corrugated roll adopt High quality chrome molybdenum steel making more hardness after heat~treating .

* Diameter of the corrugated rollers are 408mm, big and small roller design, both corrugated rollers and two ends bearings all set assembly. quick and convenience,

Save repairing time.

* Glue roller and roller control is designed to slip into a group of rail disassembly, electric adjustment of every plasma unit, optionally core paper spray device.

* The gluing roll and the under corrugated roll, the pressing roll and the under roll's gap adopt gear motor at the same adjusting. and with mechanical protected system.

* Microcomputer control or manual control by the amount of glue, micro~computer control according to different speed, base paper quality and other factors pre~operation

through the touch~screen input parameters, PLC automatically adjust a reasonable amount of glue. Improve board quality.

* Independent three~axis drive box output, universal joint transmission design, the gear selection of high quality alloy steel heat treatment enhanced the hardness, the use

of helical gear design,

the tooth surface by the grinding process processing. Main motor variable frequency speed motor used to save energy.

* up corrugated roll, pressure roll up and down, glue institutions movement adopt hydraulic control.

* Surfacer of pasting glue roller,even glue roller,preheating roller and other leading paper rollers adopts grinding,polishing and hard chromed processing.

* Optional electronic eye tracking devices, automatic roll~off adhesive paper exit.

* Design speed:300m/min.

* Working width:2500mm.



YZJ4/5 Type hydraulic stand

* Base paper rise up and down adopt hydraulic to drive, meanwhile two

base paper can be changed at same time.

* Base paper tensioning and loosing, left and right movement adopt

 hydraulic movement.

* Adopt inner expansion chuck to decrease the damage for the paper.

* Adopt multi points pneumatic brake with quick response, brake power

 is even, steady, long using life and change easily.

* Adopt hydraulic push plate to unload base paper anxiliary to decrease

 labor intensity and improve production efficiency.

* Adopt hydraulic motor to drive the trolley with continuously viable type,

double rail both two side, operation more steady and easily.

* Adopt hydraulic drive up and down, positioning adopt four wheels alinger

 to ensure the base paper center line and mill roll stand center line same

and avoid expansion chuck damage the inner part of the paper.

* The holding diameter max/min: Ф1500mm/Ф300mm

* The max holding paper weight :4500kg.

* Working width:2500mm,2800mm.









YZJ2/3 Type Hydraulic Stand

* Hydraulic pulling up and down the rolling paper, meanwhile two rolling

 papers can bechanged at same time.

* Tensing and loosing,centering and left and right movement adopt

Hydraulic movement.

* Mill containning paper adopts inflated chuck

* Tension control YZJ2 adopt double point disc pneumatic brake,YZJ3

adopt multi pointdisc pneumatic brake.

* The holding diameter max/min: Ф1500mm/Ф300mm

* The max holding paper weight :2500kg

* Working width:YZJ2:1800mm,YZJ3:2200mm、2500mm











YZJ1 Type Hydraulic Stand

* Hydraulic pulling up and down the rolling paper, meanwhile two

rolling papers can be changed at same time.

* Tensing and loosing,centering and left and right movement adopt

Hydraulic movement.

* Mill containning paper adopts inflated chuck.

* Tension control adopt double point disc pneumatic brake.

* The holding diameter max/min: Ф1500mm/Ф300mm.

* The max holding paper weight :2500kg.

* Working width:1800mm.












XY2/3 Type Core paper preheater

* The cylinder adopt dished head structure, even heat the rolling paper.

* The heater can be rotation with reducer ,uneasily break the paper.

* Electric adjusting the heating-area,getting optimal effect.

* The pre-heated cylinder accords country pressue vessel making

standard, and with pressure vessel Inspection certificate.

* The diameter of the pre-heaters is 900mm、1000mm、1100mm(XY3).

* Working width:XY2:1800mm、2200mm XY3:2200mm、2500、2800mm。












MY2/3 Type Core Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paper evenly.

* The heater can be rotation with reducer, uneasily break the paper.

* Electric adjusting the heating-area, getting optimal effect.

* The pre-heated cylinder accords country pressue vessel making

standard, and with pressure vessel Inspection certificate.

* The diameter of the pre-heaters is 900mm、1000mm、1100mm(MY3).

* Working width:MY2:1800mm、2200mm

MY3: 2200mm、2500mm、2800mm.











12.jpgMY Type Core Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paperevenly.

* The cylinder is fixed and adjust the surface of the rolling basing onthe

 wearing.

* Electric adjusting the heating-area,getting optimal effect.

* The pre-heated cylinder accords country pressue vessel making

standard, and with pressure vessel Inspection certificate.

* The diameter of the pre-heaters is φ800mm.

* Working width:1800mm.

MY1 Type Core Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paper evenly.

* The cylinder is fixed and adjust the surface of the rolling basing on the

wearing.

* Electric adjusting the heating-area,getting optimal effect.

* The pre-heated cylinder accords country pressue vessel making

standard, and with pressure vessel Inspection certificate.

* The diameter of the pre-heaters is 900mm. 1000mm.

* Working width:1800mm、2200mm.





XY Type Core Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paperevenly.

* The cylinder is fixed and adjust the surface of the rolling basing onthe

wearing.

* Electric adjusting the heating-area,getting optimal effect.

* The pre-heated cylinder accords country pressue vessel making

standard, and with pressure vessel Inspection certificate.

* The diameter of the pre-heaters is φ800mm.

* Working width:1800mm.

XY1 Type Core Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paperevenly.

* The cylinder is fixed and adjust the surface of the rolling basing onthe

wearing.

* Electric adjusting the heating-area,getting optimal effect.

* The pre-heated cylinder accords country pressue vessel making

standard, and with pressure vessel Inspection certificate.

* The diameter of the pre-heaters is 900mm、1000mm

* Working width:1800、2200mm







DY2/3 Type Multiple Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paper evenly.

* The heater can be rotation with reducer, uneasily break the paper .

* Electric adjusting the heating-area, getting optimal effect.

* The pre-heated cylinder accords country pressue vessel making standard, and with pressure vessel Inspection certificate.

* Combined into two ,three or four Multiple preheater.

* Seven layer production line adopt three layer pre heater and the other one layer is on the pasting glue machine.

* The diameter of the pre-heaters is 900mm、1000mm、1100mm(DY3).

* Working width:DY2:1800mm、2200mm DY3: 2200mm、2500mm、2800 mm。




DY Type Multiple Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paper evenly.

* The cylinder is fixed and adjust the surface of the rolling basing on the

wearing.

* Electric adjusting the heating-area,getting optimal effect.

* The pre-heated cylinder accord country pressue vessel making standard,

and with

pressure vessel Inspection certificate.

* Combined into two ,three or four multiple preheater.

* The diameter of the pre-heaters is 800mm

* Working width:1800 mm













DY1 Type Multiple Paper Preheater

* The cylinder adopt dished head structure, heat the rolling paper evenly.

* The cylinder is fixed and adjust the surface of the rolling basing on the

wearing.

* Electric adjusting the heating-area,getting optimal effect.

* The pre-heated cylinder accord country pressue vessel making standard,

 and with

pressure vessel Inspection certificate.

* Combined into two ,three or four multiple preheater.

* The diameter of the pre-heaters is 900mm、1000mm

* Working width:1800mm、2200mm














TJ5 Type Pasting

* SAdopting modular design, up and down layer glue module can replace.

* Each layer adopt inverter motor drive, synchronous drive with double face.

* High precision anilox roller paste glue, it is even and less glue

consumption.

* Under auto mode glue thickness will automatically adjust with the

 machine  speed.

* Automatically supply glue circularly in case glue will be sediment..

* Human computer interface, it can show each layer glue thickness

and input the operation parameter.

* Rail type glue plate moving structure, pneumatic control up and down

alloy steel glue plate,easy maintenance and clean.

* Pasting glue type can choose pressure roller or pressure bar, electric

micro adjustment gap, pneumatic control up and down

* When paper break or stop machine, pressure roller will rise up

automatically glue roller will idle automatically.

* Design speed 300m/min.

* Working width 2500mm、2800mm.







TJ4 Type Pasting

* Single layer double-layer and three-layer are used in 3,5and7 ply

production lines,Each using an independent variable frequency

drive, automatically track the production speed .

* Modular transmission,two layer can become three-layer easily coating

 machine to achieve transformation.

* High precision roller coating, coating evenly, and a small amount of

 glue consumption.

* Automatic recycle for the glue to prevent glue deposition, and electric

 adjustment of the thickness of the glue can also automatically adjust at

different speeds.

* Advanced man-machine interface, can be directly display thickness of

each layerof glue quantity and can enter the required parameters in the

 operation of themachine.

* Equipped with preheating device, it can accelerate glue gelatinization

 and improve the adhensive strength.

* Using roller or spring touch and pressure plate, pneumatic control device buck the paper.

* Optional electric eye tracking device,pressing roller of double facer will rise up

automatically when paper break or double facer stop.

* Glue box rise up and down adopt pneumatic control.

* Design speed:200m/min、250m/min、300m/min;

Working width:2200 mm、 2500mm、2800mm.






TJ2/3 Type Pasting glue

* Single layer double-layer and three-layer are used in 3,5and7 ply

 production lines.

* High precision and chrome plated anilox roller;well-distributed

 glue and used up less gule.

* Auto circle glue supply system to prevent the sinking of the glue.

* Free pre-heating system can speed up the glue pasting and improve

 the adhesive strength.

* Pressing roller and pasting rolerl, pasting roller and gluing roller’

s gap adopt electric adjustment.

* Electric glue pasting space(Glue-spread PLC for choice)

* Advanced human-machine interface, can be directly display thickness

of each layer of glue quantity and can enter the required parameters in

 the operation of the machine.

* Press roller device is adopted to press paper and paste glue and press

 roller device is controlled

 to go up and down pneumatically.(press board for choice)

* With external electric supply and glue pasting roller individual drive device.

* Optional electric eye tracking device,pressing roller of double facer will rise up automatically  when paper break or double facer stop.

* TJ2 Design speed:150m/min;Maximum width:1800mm.

* TJ3 Design speed:200m/min;Working width:1800mm.

* TJ3 Design speed:150m/min;Working width:2200mm.







TJ1 Type Pasting glue

* Single layer double-layer and three-layer are used in 3,5and7 ply

production lines.

* High precision and chrome plated anilox roller;well-distributed glue and

 used up less gule.

* Auto circle glue supply system to prevent the sinking of the glue.

* Free pre-heating system can speed up the glue pasting and improve the

adhesive strength.

* Press roller device is adopted to press paper and paste glue and press

 roller device is

 controlled to go up and down pneumatically.(press board for choice)

* With external electric supply and glue pasting roller individual drive device.

* Design speed:120m/min.

*  Working width :1800mm.














ZQY Type of Computerized Slitter scorer

* Control of slitting or scoring subassembly adopts individual AC servo motor and controller, therefore realizes quick and precise order change. Order time is < 3 seconds.

* Shift of slitting or scoring subassembly adopts precise gear wheel and rack made of alloy steel, with high precision, reliability and easy maintenance. The precision of slit and

score is ±0.5mm.

* Adopts thin tungsten steel blade design, neat paper margin after cutting, no collapse, no burr and no crack;neat and artistic ; with good linearity.

* With blade auto-cooling and lubricating;knife milled by hand or auto knife milling; slitting and knife milling at the same time to improve working efficiency.

* Three scorer type, convex to the concave, convex to the convex, convex to the flat, all three can change electrically, scorer gap automatic adjustment, good linear, not shredding,

 easy to bend, withthe function of pre pressing.

* The whole machine Electric correcting the error to cooperate with the paper excursion effectively.

* Slitter and scorer adopt individual motor drive, automatically follow the speed of the production line.

* With two units cooperating to realize order-0 second changing order.

* Design speed:200m/min、250m/min、300m/min.

* Working width:1800mm、2200mm、2500mm、2800mm.






HQ3 Types of Screw-blade CNC cutters

* Special structural design, particularly well mechanical strength wall

and base.

* High-precision, high hardness grinding gears, anti-high-speed, long life.

* Special high-speed cutter for cutting cardboard smooth without flash.

* High precsion kinfe tube spin design, cutting effect is very smooth.

* Special adjustment and tool design,convenient

* Drive box adopts oil pump type high precision gear drive with low noise

 and high precision.

* AC servo motor driven cutting, high efficiency, high precision.

* Transport out of paper using an independent variable frequency motor

drive, and line speed synchronization.

* AC servo control system, energy saving 30%.

* Computers can store multiple sets of orders, stop automatically

for a single, and to achieve computing network to facilitate the

production management.

* Cutting length range:500-9999mm; Cutting accuracy: ± 1mm.

* Design speed :300m/min.

* Working width:2500mm、2800mm.






HQ2 Types of Screw-blade CNC cutters

* With single layer or double layer structure for choice.

* Adopts individual AC servo motor; AC servo motor controls cutter with

 high efficiency and high precision, energy saving 30%.

* Adopts PLC to display all kinds of production information which can be

 looked through, revised ,added or cancelled.

* The computer can store many groups orders and can change

specifications automatically.

* The screw-knife is made of special material; with less cutting force, high

efficiency and long service life.

* Drive box adopts oil pump type high precision gear drive with low noise

and high precision.

* Output paper adopts individual motor drive; automatically follow the

speed  of the production line.

* The length of the cut-paper is 400mm-9999mm; cutting precision is ±1mm.

* Design speed :250m/min

* Working width:1800mm 、2200mm.









HQ1 spiral cutter NC cut off machine

* Ac servo motor is used to drive and control the crosscutting cutter

shaft, input and output paperboard adopt independent motor, sync-

hronizing with the production line.

* Human-machine interface displays various production

information. Multiple orders can be stored and checked,

modified, added or cancelled at any time.

* Use scissors type progressive spiral form cutting.

* Special spiral cutter, small cutting force, high efficiency, long life.

* The driving box adopts pouring oil lubrication, precision

gear transmission, low noise, smooth transmission.

* Cutting length: 500-9999mm, cutting precision: ±1mm.

* Design speed:150m/min

* Working width:1800mm









GQ3 The Over Bridge Conveyers

* Bridge using high-quality profiles and plates, the main steel production of H

* Strong ladder.safe guardrail and the full strong petterns pleate to make sure the safety of the workers on the over bridge.

* On the single facer have drop system, indenpedent frequency motor device,with the corrugated machine's speed at the same step.

* It adopts cotton tape tracting conveyer, strong friction force better ventilation property

* The speed proportion is reasonable and single-layer corrugated paperboard stack neatly.

* Inverter controls air flow and tension.

* Baffle double-guide column positioning, screw driver

* Baffle movement with reducer, automatic positioning

* Control by double place switch conveniently, up and down of the bridge.

* Single ,double ,three layer is fit for the 3&5&7layer production line .

* Design speed :150m/min、200m/min.

* Working width:1800mm、2200mm(150m/min).

GQ4/5 The Over Bridge Conveyers

* Bridge using high-quality profiles and plates, the main steel production of H.

* Strong ladder.safe guardrail and the full strong petterns pleate to make sure the safety of the workers on the over bridge.

* On the single facer have drop system, indenpedent frequency motor device, with the corrugated machine's speed at the same step.

* It adopts cotton tape tracting conveyer, strong friction force better ventilation property.

* The speed proportion is reasonable and single-layer corrugated paperboard stack neatly.

* Control by double place switch conveniently, up and down of the bridge.

* Single ,double ,three layer is fit for the 3&5&7layer production line .

* Design speed :GQ4:200m/min、250m/min GQ5:250m/min、300m/min.

* Working width:GQ4:2200mm、2500mm GQ5:2200mm、2500mm、2800mm.






GQ2 Convey bridge

* The bridge adopts high quality profiles and plates, and the main frame

adopts international channel steel and i-beam steel.

* Single-sided corrugated lifting adopts independent frequency conversion

motor drive, synchronous with the speed of corrugated machine.

* Adopt adsorption tensioning device ,the adsorption tension adjusting

 device is provided.

* Both on the convey bridge and under the bridge two control,

convenient and fast.

* Single layer, double layer for three, five - layer corrugated

 board production line.

* Design speed: 120m/min

* Wroking width: 1800mm











GJZ Over bridge tension aligner

* Module structure, installation and debugging are easy and convenient.

* Automatically adjust up middle and down single layer paperboard to align,

thereis no any adjustment with the paper width changing.

* Full width infrared light curtain, it can align based on paper edge or

 middle.

* Through the paper tension controller automatically control paper, because

there is no baffle plate on both sides, therefore paper will not be broken.

* Reducing stop machine time and noise, save energy and reduce

consumption.

* Design speed :120m/min-300m/min.

* Valid working width:1800mm、2200mm、2500mm、2800mm.












28.jpgSM5 Type Double Facer

* Hot plate pressure roller adopt intensive type, pressure can adjust

 by section. Spring pressure shoes and air bag pressure shoes are

optional as customer special requirement.

* Lift adopt hydraulic power. Hydraulic mechanism hide under cover,

 according to the production of corrugated board layers of sub-pressure,

help maintain the appropriate pressure cardboard shape.

* Heating plate temperature digital display

* Down contton belt adopt S shape manual correcting tensioning

 mechanism,simple structure and easy operation

* S type Hand tension device and pneumatic tension device are adopted

on the up cotton fabric bele;with simple and practical structure.

* The imported air sac correcting system is optional for the cotton belt

cotton.(SM4/ SM5 type)

* Cooling unit adopts up and down intensive rollers design.

* The machine adopts PLC control, advanced human-machine interface

for direct digital display the machine speed.

* Steam piping and a reasonable number of layers according to the speed achieved cardboard hot-plate group thermostat.

* Max speed: 300m/min; Working width:2500mm、2800mm.







SM3/SM4 Type Double Facer

* Hot plate pressure roller adopt intensive type, pressure can adjust by section. Spring pressure shoes and air bag pressure shoes are optional as customer special requirement.

* Lift adopt hydraulic power. Hydraulic mechanism hide under cover, according to the production of corrugated board layers of sub-pressure, help maintain the appropriate pressure

cardboard shape.

* Heating plate temperature digital display

* Down contton belt adopt S shape manual correcting tensioning mechanism,simple structure and easy operation

* S type Hand tension device and pneumatic tension device are adopted on the up cotton fabric bele;with simple and practical structure.

* The imported air sac correcting system is optional for the cotton belt cotton.(SM4/ SM5 type)

* Cooling unit adopts up and down intensive rollers design.

* The machine adopts PLC control, advanced human-machine interface for direct digital display the machine speed.

* Steam piping and a reasonable number of layers according to the speed achieved cardboard hot-plate group thermostat.

* SM3 Max speed: 150m/min,200m/min; Maximum width:1800mm.

* SM4 Max speed: 200m/min; Working width:2200mm.






SM1 Type Double Facer

* Surface ofvheating plate adopt grinding treatment (12, 14 and 16 pieces

are selected respectively according to the number of layers and width of

board)

* The heating part adopts the compact pressure roller, which can be

lifted/lowered bypneumatic system, and the pressure can be adjusted

according to the number of layers of the paperboard (gravity roller

and pressure plate are optional).

* Double facer machine temperature digital display

* Cold section adopts supporting plate type to ensure the quality of

 the design

* Reasonable arrangement of steam pipe, hot plate group temperature

 control can be realized according to the number of cardboard layers

 and speed

* Design speed:120m/min

* Working width:180mm









ZCD3/5 Main Drive Unit

* Main drive up roller diameter 900mm/φ960mm, down roller

diameter: φ650mm/φ750mm, also with middle height design,

the rubber roller is with high wear resistantcoating rubberb, the

 shape is like.

* Drive gear box with helical gears structure, the gear with high-quality

alloy steel after heat treatment and grinding processt, low noise, big

transmission torque.

* Both the bearing part and gear case adopt oil pump to lubricate.

* Adopt big power inverter motor to drive with big speed range and

 runs steadily

* Independent direct-drive two-axis drive box, double-sided machine

at high speed to ensure the stability and reliability.

* It is equipped with the synchronous signal generator to adjust the

 synchronous function, then to keep the synchronization with the pasting

machine ,

* Active force adopts inverter motor .

* Design speed:ZCD3:200m/min; ZCD5:300m/min;

* Working width:1800mm、2200mm、2500mm、2800mm.






ZCD1/ZCD2 Main Drive Unit

* The main drive up roller diameterZCD1Ф700mm, ZCD2Ф860mm,

the down roller diameter, ZCD1Ф500mm ,ZCD2Ф650mm, and with

 the high wear-resistant coating rubber herringbone patterndeep.

* Drive gear box with helical gears structure, the gear with high-quality

 alloy steel after heat treatment and grinding processt, low noise, big

transmission torque.

* Gears in the gear case adopts immersion oil lubrication, it can prolong

gears using life.

* The use of variable frequency main drive motor, speed range, stable

 operation.

* It adopts whole wallboard to drive, so it can ensure the double facer

machine stability, reliability at high speed.

* It is equipped with the synchronous signal generator to adjust the

synchronous function, then to keep the synchronization with the pasting

machine.

* The main power adopts inverter motor control.

* ZCD1 Design speed:120m/min; Working width:1800mm.

ZCD2 Design speed:150m/min; Working

width:1800mm.







DM7 High speed multi-function stacker

* The perfect combination of gantry lift with belt conveyor and large basket lift ensures the fastest discharge cycle time and the best stacking quality at the highest

production line speed.

* Seven separate conveyor belts, controlled by seven servo motors, produce different belt

* Speeds according to the length of the cardboard, the number of orders and the production speed.

* The first section of vacuum adsorption transport paperboard, four rows of carbon fiber layering automatic control pressure, paperboard neat, batch accurate, more

 stable accumulation.

* Transfer section adopt basket lifting stacking, servo control gantry lifting stack paperboard, can achieve smooth and fast lifting, stacking neatly.

* Back baffle movement and positioning adopt synchronous servo control, automatic adjustment according to system settings, quick and accurate change of order.

* Stacking horizontal platform module belt structure and automatically horizontal output when the stacking reaches the set quantity.

* The horizontal paper discharging platform is controlled by servo motor, and the progressive acceleration can prevent the phenomenon of paper dumping.

* Basket paper platform front and back automatic switch, cardboard transport front and back achieve the dislocation, the realization of dislocation stacking.

* Realize 10, 15, 20, 30 pieces of high-speed dislocation stacking, reduce manual counting, greatly improve the production efficiency.

* The lifting height is controlled by laser induction, which can achieve perfect paperboard stacking effect.

* Adopt computer automatic control, can receive order, receive change order, change batch, paper calculate accurately.

* Standard color touch screen for on-site operation and monitoring.

* Standard communication interface, control interface, can be connected with production management system, automatic order change and order management.

* Maximum stacking length: 3600MM;The maximum stacking height is1800MM

* Maximum speed: 300 m/min;

* Working width: 2500、2800mm







DM6 Double working position hang basket malposition stacker

*Small gantry type stacking, automatic order changing and stacking, accurate counting and orderly stacking.

*Five independent conveyor belts are respectively controlled by synchronous servo motor, and the speed of paperboard conveying is controlled by server.

*In the first stage of conveying, the paper board is transported by vacuum adsorption type, and four rows of carbon fiber strips are automatically controlled to press the paper.

The paperboard is neat and accurate in batches, and the stacking is more stable.

*Gantry type lifting stacking, frequency conversion control gantry lifting paper stacking, can achieve stable and fast lifting, stacking neat.

*The rear baffle movement positioning synchronous servo control, according to the system setting automatic adjustment, change single action fast and accurate.

*The horizontal stacking platform adopts the flat belt type, and the horizontal output is automatically balanced when the stacking reaches the set number.

*The height is controlled by laser induction to achieve perfect stacking effect.

*It is controlled by computer automatically. It can receive orders, change orders, change batches, and calculate paper accurately.

*Color touch screen is provided as standard to facilitate on-site operation and monitoring.

*Communication interface and control interface are provided as standard, which can be connected with production management system to automatically change orders

and manage orders.

*Maximum stacking length: 3600 mm; maximum stacking height: 500 mm

*Maximum speed: 250 m / min

       *Working width: 2200mm, 2500mm, 2800mm







DM5 Double working position hang basket malposition stacker

* Double working position design, up layer hang basket malposition stacker, down layer computer counting stacker, both two type stacker for option.

* Transmit first section adopt vacuum type, four rows carbon fiber pressing bar automatically control pressing paper, paper receiving neatly, steadily and accurately.

* Adopt computer automatically control, can accept the order, automatially change order and batch, paper calculate accurately.

* The paper patting type automatic control according to the paperboard speed and order change with high efficiency and save labor.

* Back baffle moving and positioning adopt AC servo control, automatically change according to the system setting, change order speed quickly and accurately.

* Double back baffle design, pneumatic cylinder control to rise, back baffle of the front and back automatically change, then paperboard stack will achieve malposition stack.

* Six piece indepedent transmit belt with inverter motor control, automatically adjust speed according to the production line speed.

* Stacker later output adopt plate module belt, after reaching the setting quantity will automatically output steadily.

* Achieve 15/20/30 pcs high speed malposition stacking, decrease the manual counting and packing by batch and increase the produciton efficiency.

* Maximum speed: 300pcs/min,

* Working width:2200mm、2500mm、2800mm.







DM4 Type hang basket automatic malposition stacker

* Hang basket computuer automatic control, servo motor up and down furl paperdevice, it can make the receiving paper plate uniform moving, it is steady and neat.

* Transmit first section adopt vacuum type, four rows carbon fiber pressing bar automatically control pressing paper, paper receiving neatly, steadily and accurately.

* Adopt computer automatically control, can accept the order, automatially change order and batch, paper calculate accurately.

* The paper patting type automatic control according to the paperboard speed and order change with high efficiency and save labor.

* Back baffle moving and positioning adopt AC servo control, automatically change according to the system setting, change order speed quickly and accurately.

* Double back baffle design, pneumatic cylinder control to rise, back baffle of the front and back automatically change, then paperboard stack will achieve malposition stack.

* Five piece indepedent transmit belt with five inverter motor control, automatically adjust speed according to the production line speed.

* Stacker later output adopt plate module belt, after reaching the setting quantity will automatically output steadily.

* Achieve 15/20/30 pcs high speed malposition stacking, decrease the manual counting and packing by batch and increase the produciton efficiency.

* Maximum speed: 250pcs/min, working width:2200mm、2500mm、2800 mm.







M3 Hang basket stacker

* Basket-type computer-controlled servo motor lift stacker unit, uniform movements can be done hanging baskets, stacking a smooth, neat.

* Computerized automatic control, can accept orders automatically for a single, for approval, the paper calculated accurately.

* The paper patting type automatic control according to the paperboard speed and order change with high efficiency and save labor.

* Back baffle size adjustment adopts servo motor synchronization settings.

* Four independent conveyor belt respectively control by four frequency motors, automatic speed change transmission according to production speed.

* The max stacker length:3600mm. The max stacker height:1800mm

* Max speed:200m/min、250m/min、300m/min.

* Working width:2200mm、2500mm、2800 mm.





DM2 Type computer counting stacker

* DM2type four section convey belt, independent inverter motor control.

* Front section with suction feeding unit, make paper stack more neatly.

* Automatically track production speed, the speed can be adjusted.

* Back baffle size adjustment adopt servo motor sync setting.

* Control part adopt high quality human-computer interface and PLC

 control.

* Computerized automatic control, can accept orders, automatically achieve

paperboard convey, partition, stack and counting.

* Maximum stacker length is 3600mm, maximum stack height 300mm.

*  Design speed 200m/min.

*  Working width:1800mm、2200mm.










40.jpgDM1 Manual counting stacker

* Two sections of belt structure, independent variable frequency

electric drive.

* Automatic tracking production schedule, speed can be adjusted.

* 90 degree turning with electric drum shifting transmission.

* Max stacking length:3000mm.

* Effective speed :120m/min、150m/min.

* Working width:1400mm、1800mm.
















HEBEI SHENGLI CARTON EQUIPMENT MANUFACTURING CO.,LTD
更多

contact us

Production line company address:600 meters road east and 272 kilometer

105 country road south town Dongguang county Hebei province.

sales telephone:(0086) 317-7809888 7809666 13803233088

service telephone:(0086) 317-7809999 15030778922

fax :(0086) 317-7809888

website:WWW.hebshengli-cn.com

email:dgsljx@126.com

Name on website: shengli carton machine

post code:061600

HEBEI SHENGLI CARTON EQUIPMENT MANUFACTURING CO.,LTD
更多

contact us

Printing company address:Lisiwei industrial zone

Dongguang county Hebei province

sales telephone:(0086) 317-7751055 7759866 13803233066

service telephone:(0086) 317-7751899 7759899 15832758879

fax :(0086) 317-7751368

website:WWW.hebshengli-cn.com

email:dgsljx@21cn.com

Name on website: shengli carton machine

post code:061600

首页
更多
首页

手机版二维码

×
