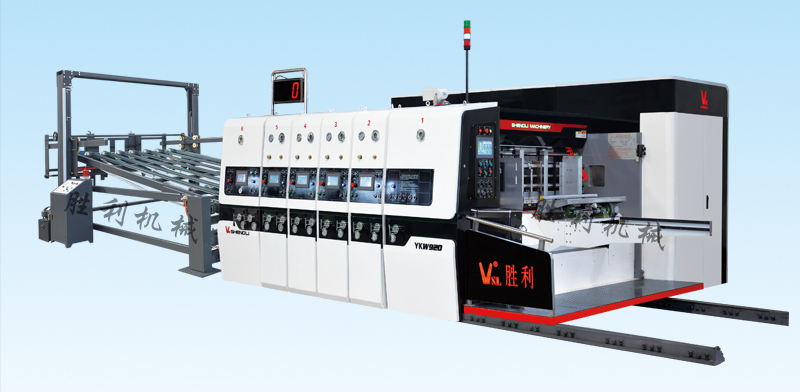

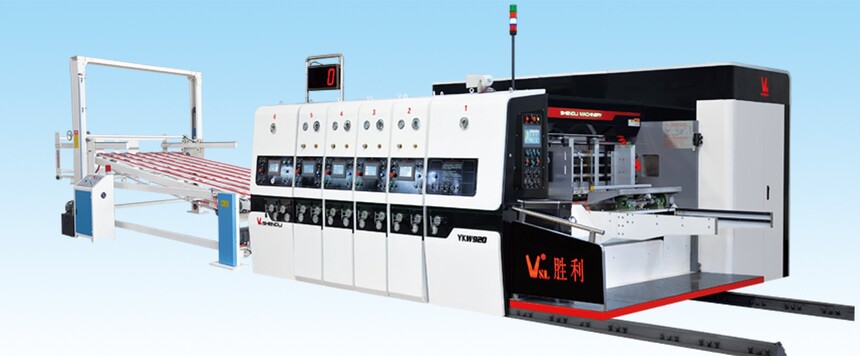

Ykw Series of High Speed Flexo Ink Corrugated Paperboard Printing Slotting Die Cutting Machine 新

Function and characteristics:

1. All the main electric appliances of the whole machine adopt the product of Schneider made in France.

2. Adopt lead-edge feeder system. (optional servo feed system)

3. Adopting straight gear driving, the gears are made from high frequency quenching and polishing-gear.

4. All axles of roller must be chrome-plating in order to increase the hardness.

5. The gears adopt shower type circular lubricating with oil balance function.

6. This machine adopts PLC & touching screen. Multi functional control, and frequency conversion control machine which are precise and reliable.

7. Automatically changes back to zero and correct the plate making.

8. Adopting the mould piece designing. The multi-color printing machines can be combined and linked in any way.

9. Flexo plate roller lateral adjustment adopt computer PLC control.

10. Cutter mould roller and soft roller adopt International standard size, with easy purchasing mould and cushion.

11. With compensating device to follow and compensate the speed of cushion roller, making sure that the sizes of the box and the cutter mould are the same.

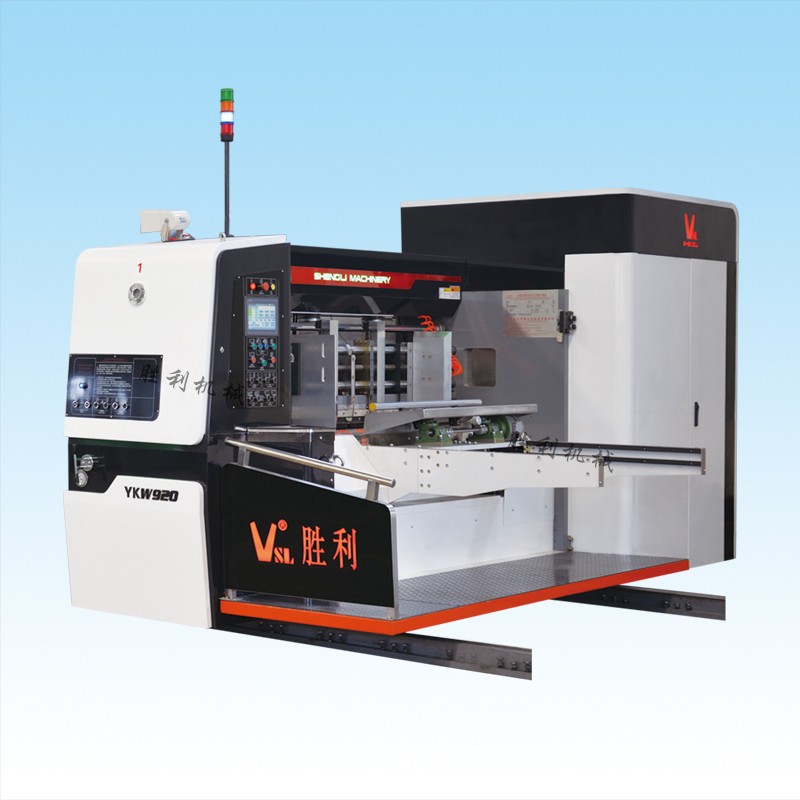

Function of Feeding Department:

1. Feeding unit adopt mechanical lead edge feeding system.

2. Three shaft lead edge feeding. smooth and accurate .

3. Assistant suction(7.5KW), wind energy and press be controlled by transducer thereby adapt differ paper inquiry.

4. Front baffie clearance adjusting adopt protruding wheel configuration also convenience and apply.

5. Provide paper glue roller adopt elasticity and floac outfit. Not only ensure provide Veracity but also avoid press bad cardboard. Adjust capacity be controlled by electric machinery and showing nicety and trustiness by touch screen.

6. The up and down of the back baffle movement and front and  back movement all controlled by the compressed airmotor, convenient and swift.

7. Eleclric control machine separation and reunion together with alarm bell It will persist belling when traveling. Then insure safety of operator.

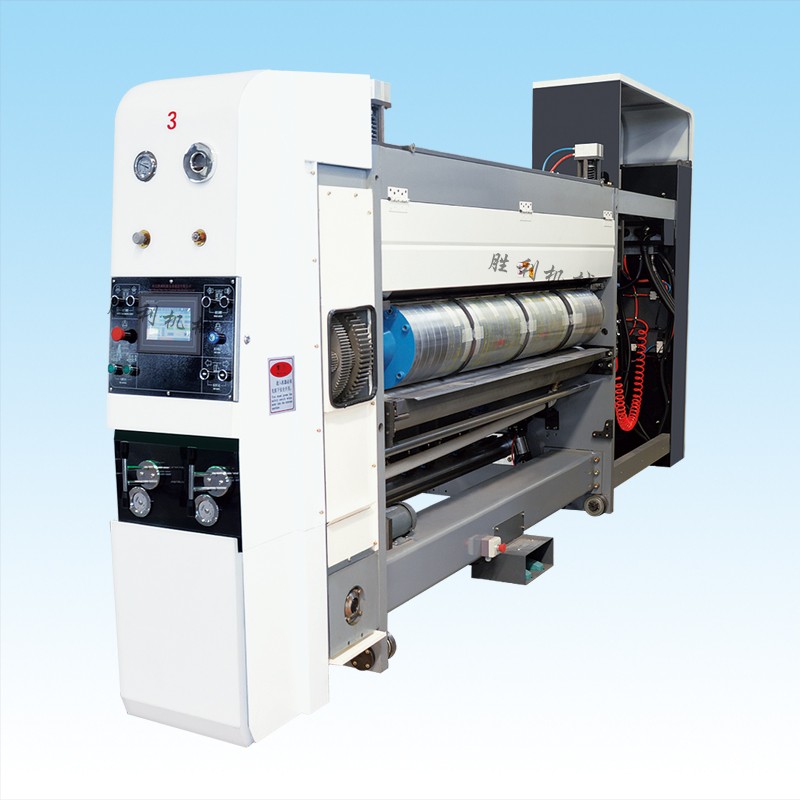

Function of Printing Department:

1. Can adopt the single doctor blade The system can ensure that the ink roller network points transferred to the plate, and can completely control the amount of ink in the ink, ink stability. To print finer lines, high DPI, print cardboard better, easy maintenance.

2. All roller adopt super steel. Adjust by transfer balance and made by plating chrome and skiving.

3. Printing phasic adopt PLC touch screen control and electric data 360 adjust(when dynamic and static state should adjust.)

4. Roller transverse adopt electric control and transverse adjust distance is 20MM It can should auto refer middle.

5. It has oil base ink monitor and control stop provide paper after alarm without oil base ink.

6. Load and unioad space of printing. foot step switch control positive and negative turning.

7. The gap of the adjustment of the transfer roll impressing roll rubber roll and the anilox roll adopt squagging instruction.

8. The feeding wheel adopt swift movement instruction . made the adjustment even swift and convenice .

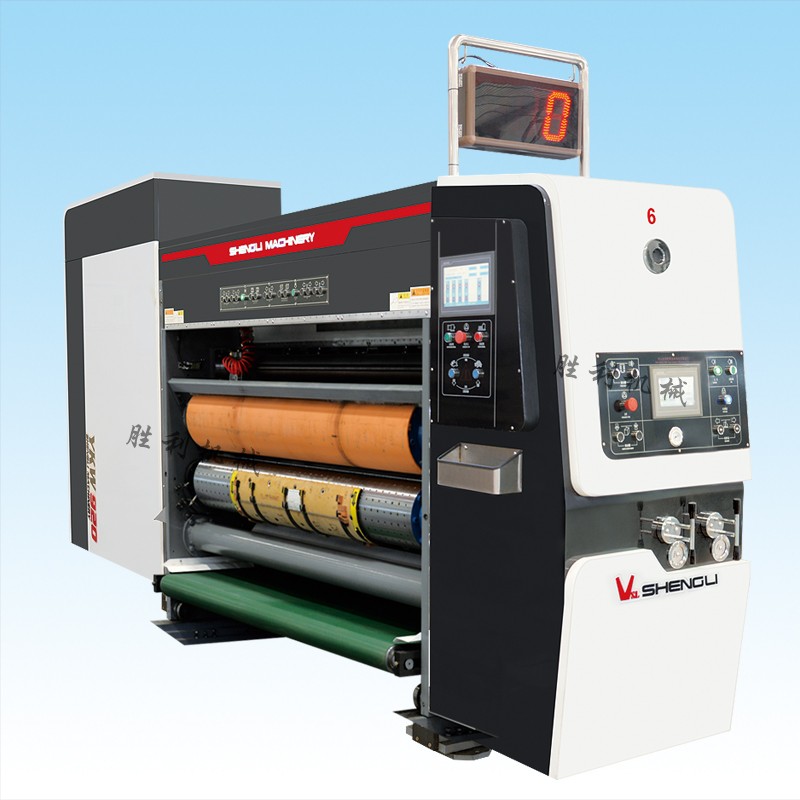

Function of Slotting Department:

1. It adopt single shaft double knife slotting, pre-creasing then creasing, the pressing effection even better. It’s good for the producing processing after gluing box follow-on equipment.

2. Upper pressing wheel wrap rubber spring outside, don’s damage the paperboard.

3. The gap of the pre-creasing wheel, creasing wheel and the slotting knife adopt squagging instruction.

4. Transfer of notch knife seat adopt ball bearing silk bar and long life and high nicety.

5. The pressing wheel, slotting knife seat sway adjustment at the same step. the PLC adjusting.

6. Notch knife width 8.0 MM, it adopt alloy steel material. After heat treatment and grinding, blade tartness and long using life.

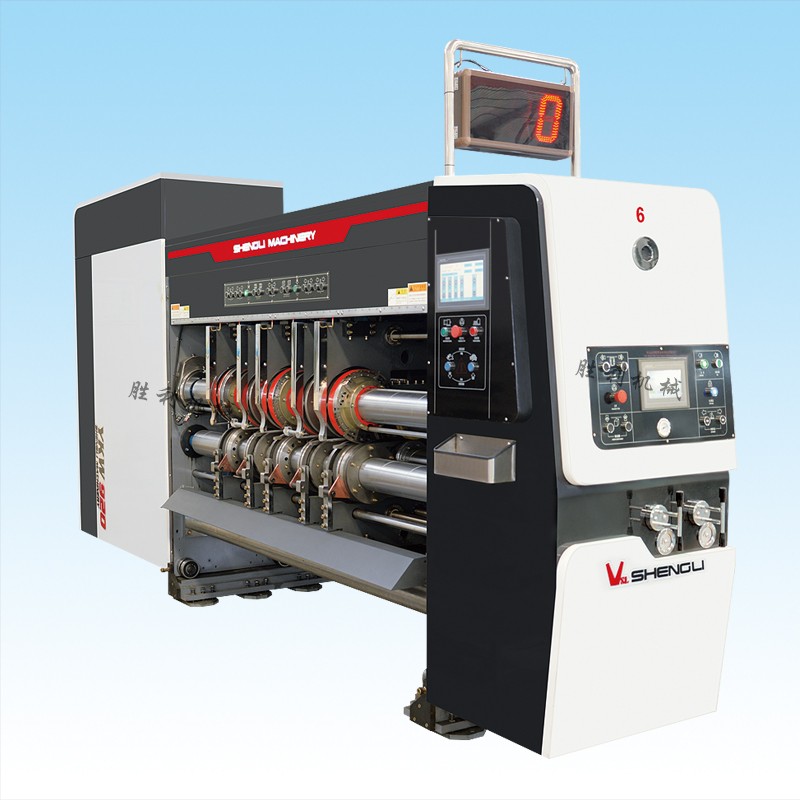

Function of Rotary Die Cutting Department:

1. Die-cut phase and the gap between the cutter mould rollers are both controlled by computer, which can display but aslo can to set up.

2. The cushion roller adopts mechanical camdrum portable structure (40mm).

3. The gap between the cushion roller and the cutter mould roller adopts electrical adjustment. When stopping feeding paper. the soft will rise automatically; When working, the soft roller will return to the working position.

4. Adopt compentating system, No matter how much the cushion diameter changes. The speed of the cushion compentate and follow automatically, without adjustment by man.

5.With restoration for cushion after wear and tear, Keeping the surface of the cushion smooth.

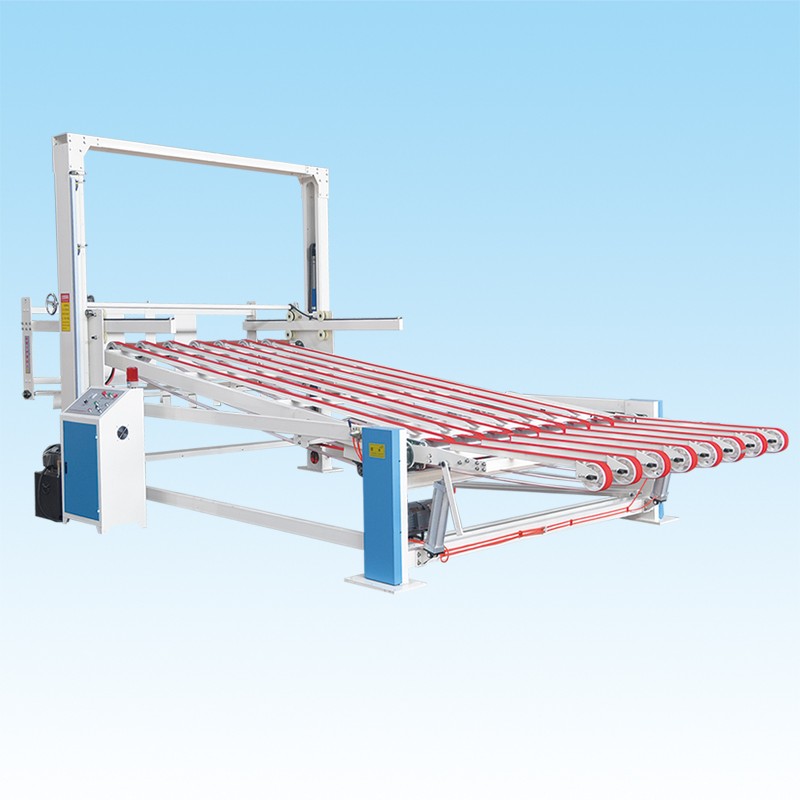

Hydraulic Stacker:

1. Bin arm using pneumatic operation, manual control.

2. Bedtable lifting, hydraulic station double hydraulic cylinder drive, to ensure the safety of operators.

3. Stacking, using a flat wrinkles climbing belt and steel clamping device, so that the stacking order and tidy.

4. Hold paper feeder can be adjusted to hold the opening width, with a batch accumulation function.

5. The use of side shoot baffles to ensure more orderly stacked cardboard.

6. Electric enforce the use of PLC programming control, independent of the operating electric box.

7. Optional vibration stripping and lateral waste function.

8.Stacker height: 1600mm.
