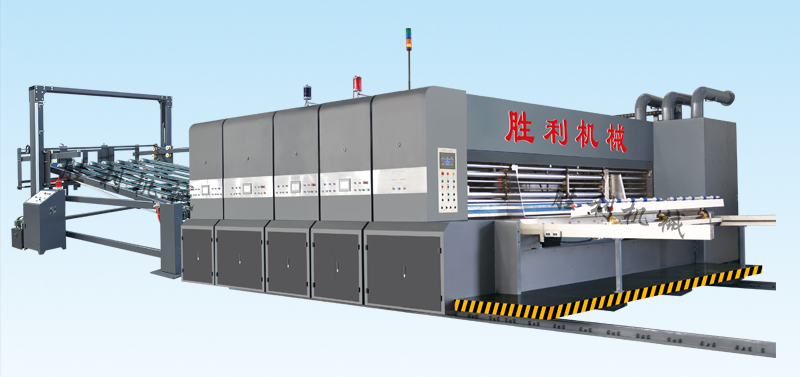

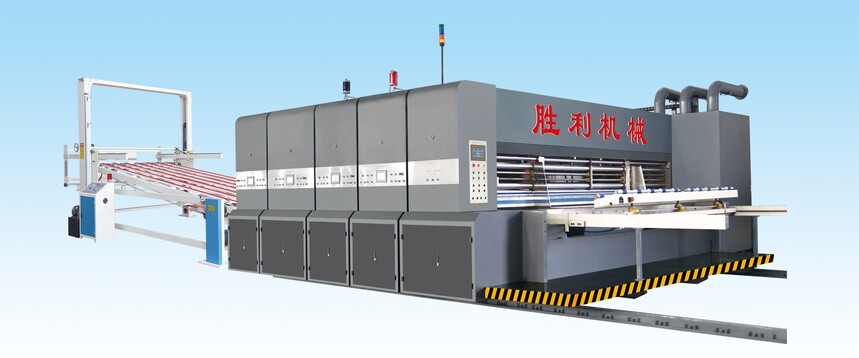

Ykw Series of High Speed Flexo Ink Corrugated Paperboard Printing Slotting Die Cutting Machine
收藏
商品说明
Function and characteristics:
1. All the main electric appliances of the whole machine adopt the product of Schneider made in France.
2. Adopt lead-edge feeder system.
3. Adopting helical gear driving, the gears are made from high frequency quenching and polishing-gear.
4. All axles of roller must be chrome-plating in order to increase the hardness.
5. The gears adopt shower type circular lubricating.
6. This machine adopts PLC & touching screen. Multi functional control, and frequency conversion control machine which are precise and reliable.
7. Automatically changes back to zero and correct the plate making.
8. Adopting the mould piece designing. The multi-color printing machines can be combined and linked in any way.
9.can print seven layer corrugated paperboard with three A flute and honey comb paperboard.
Function of Feeding Department:
1. Adopt five-axle lead-edge feeding, even accuracy, thin and bend paperboard easy to be feed in.
2. It can send the paperboard continuously or by partition equipped (with counting device )
3. Electric controlling the clutch of the machine platform and installed alams in order to assure the safe of the operating personnel while the bell rings constaintly during marching .
4. The electrical machinery of the main engine starts the protective device.(If the machine has not been locked.the main engine can not start revolving.)
5. The separating electrical machinery starts the protective device.(If the machine has been locked you can not start the separating electrical machinery.)
6. It can adjusting feeding paper running ,relieve feeding glue roller’s preesure .
7. dust collecting plant, brushes and the air blower can clear the dust and the paper scrap of the paperboard surface.
8. Left and right side blocking pland electric controll.
9. Back support-paper platform electric adjusted.
10. Paperboard feed gap is electric adjustment.

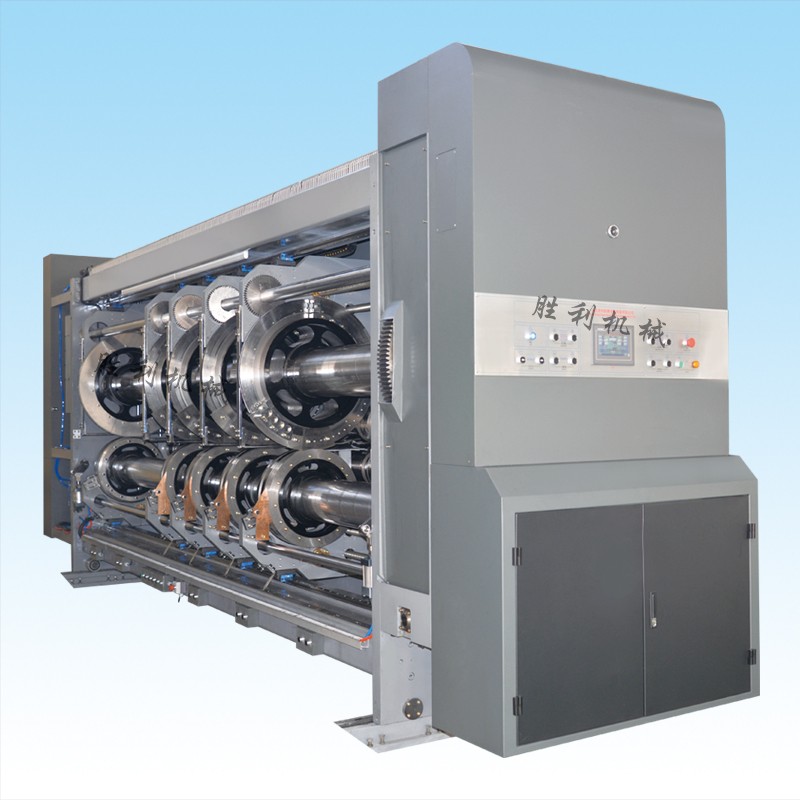

Function of Printing Department:
1. The printing roller and trace pressing roller adopt High quality steel material.To grind the surface and do the hard chrome plating.
2. To correct by dynamic balance,so the revolving is steady.
3. To load and unload the printing plating and step on the switch.Electric controlling the positive and negative revolving.
4. The space of the printing & pressing roller can be adjusted by electric.The scale panel shows the data.
5. Phase-adjusting mechanism,planet type gear structure.
6. To adopt PLC & touching screen to control the printing phase by the way of electric digital type 360 degrees adjustment.Automatic plate correcting,automatic zero returning and high speed phase adjusting.
7. Printing phase fixed device,pneumatic brakes.While the machine separates or the phase is adjusting,the brakes can restrict the revolving of the machine platform and keep the fixed point of the original gears' position.
8. The distance of the horizontal adjusting the printing roller is 20 mm.
9. Rubber roller:The surface of the roller is steel pipe which is packed by the wear-resisting rubber.Adopting medium and high special grinding the rubber roller has effective ink-spreading.
10. Steel material net-grain roller:Steel pipe surface grinding.Press and make net-grain,hard chrome plating.
11.It sets up inking rollers rotation electric machine.Keeping main machine from stopping water and ink turning dry.
Function of Slotting Department:
1. Slotting phase adjusting mechanism,planet type gear structure.
2. Slotting phase is controlled by PLC & touching screen and adjusted by the way of electric digital type 360 degrees.(It can be adjusted while revolving and stopping.)
3. The creasing wheel gap adopt electric adjustment with the touch screen displays data.
4.The slotting knife seat gap adopt electric adjustment with the touch screen displays data.
5.The slotting and the creasing distance four axle adjusted by electrically synchronously.The height of paper chest four axle adjusted by electrically synchronously.
Function of Rotary Die Cutting Department:
1. Die-cut phase and the gap between the cutter mould rollers are both controlled by computer,which can display but also can to set up.
2. The cushion roller adopts mechanical camdrum portable structure(40mm).
3. The gap between the cushion roller and the cutter mould roller adopts electrical adjustment.When stopping feeding paper,the soft roller will rise automatically;When working,the soft roller will return to the working position.
4. Adopt compentating system.No matter how much the cushion diameter changes,the speed of the cushion compentate and follow automatically,without adjustment by man.
5.With restoration for cushion after wear and tear.Keeping the surface of the cushion smooth.

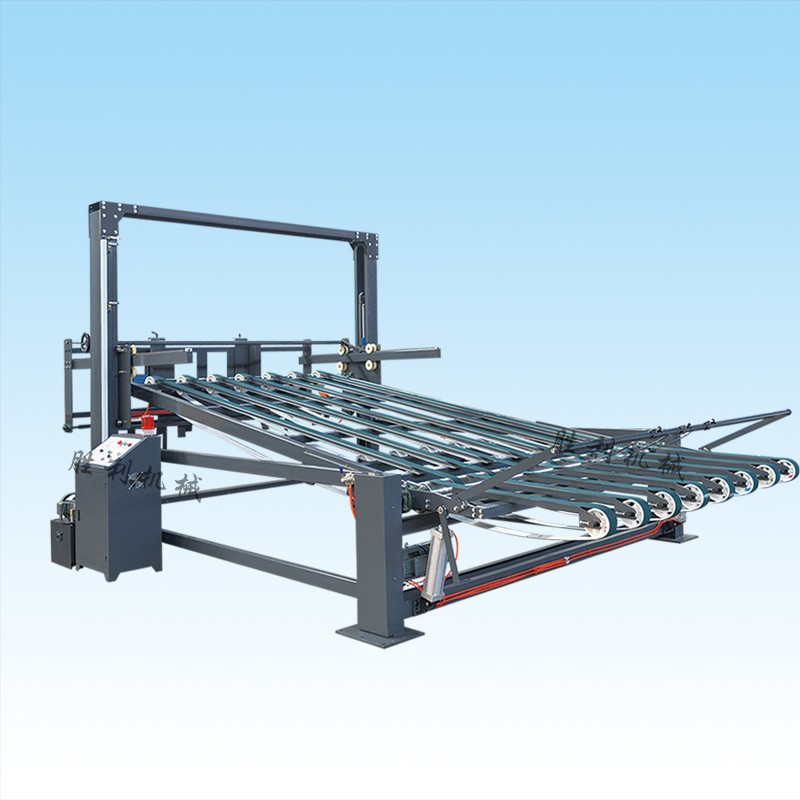

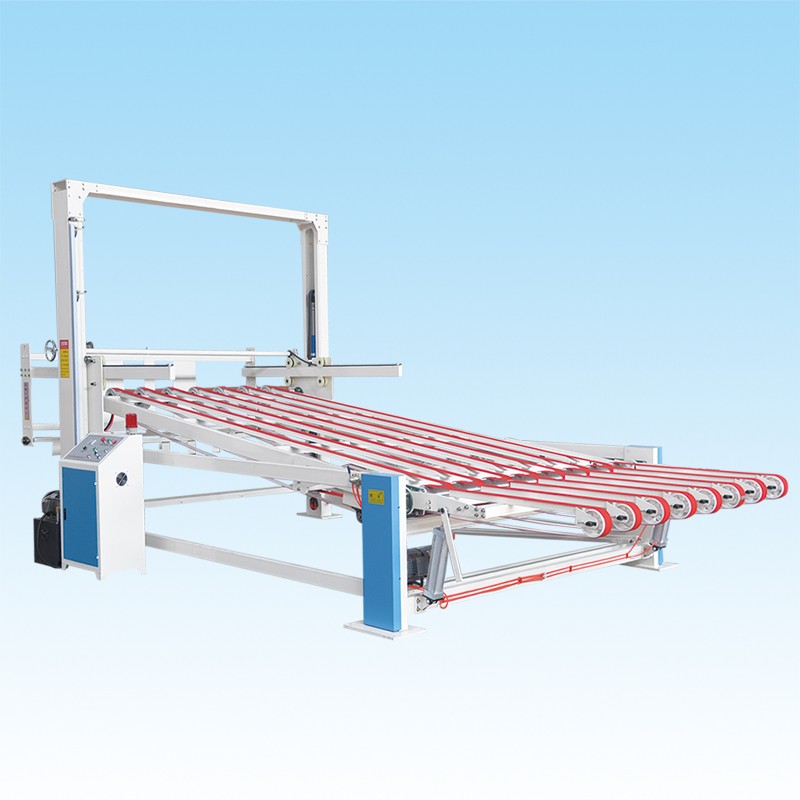

Hydraulic Stacker:
1. Bin arm using pneumatic operation, manual control.
2. Bedtable lifting, hydraulic station double hydraulic cylinder drive, to ensure the safety of operators.
3. Stacking, using a flat wrinkles climbing belt and steel clamping device, so that the stacking order and tidy.
4. Hold paper feeder can be adjusted to hold the opening width, with a batch accumulation function.
5. The use of side shoot baffles to ensure more orderly stacked cardboard.
6. Electric enforce the use of PLC programming control, independent of the operating electric box.
7. Optional vibration stripping and lateral waste function.
